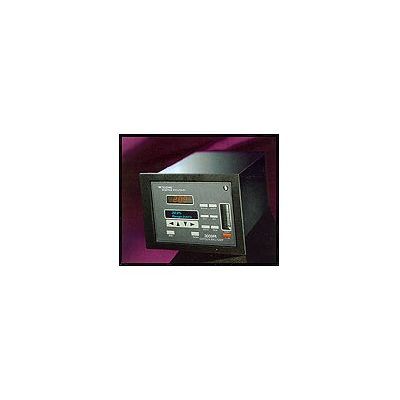

Teledyne Analytical - Model 3000P -Percent Oxygen Analyzers
The 3000P Series of Percent Oxygen Analyzers provides powerful microprocessor technology while offering tremendous versatility in the 0-1% to 0-100% range. These instruments offer three user-selectable linear ranges, high accuracy, fast response, adjustment alarms, and auto diagnostics. No zero gases are required in most applications. The heart of the analyzer is a specially qualified Micro-fuel Cell designed to measure oxygen in the gas sample.
The sensor is unequaled in the industry for accuracy, sensitivity, and reliability. These instruments can be used as a separate unit or as a component of a larger analytical system.
Applications include: Air separation, Furnace, Chemical processes, Petrochemical
The Model 3000PB Oxygen Analyzer is the bulkhead mount, NEMA 4 rated version in Teledyne`s 3000 series of full service oxygen analyzers. This unit provides the latest in powerful microprocessor technology while offering tremendous versatility.
Designed with the user in mind, this unit offers three user-selectable linear ranges, high accuracy, fast response, two adjustable alarms, and auto diagnostics. No zero gases are required.
The Model 3010PA Percent Oxygen Analyzer is designed as a split architecture version of the 3000 series. A general purpose control unit, designed for non-hazardous areas, controls a specially developed analysis unit that can operate in a hazardous area.
The explosion proof enclosure is NEMA 4/7 rated, U/L and CSA listed for Class I, Division 1, Groups B, C, and D service. Options include cal/zero valves and flame arrestors
The Model 3010PB Percent Oxygen Analyzer is designed as a split architecture version of the 3000 series. A bulkhead mount, NEMA 4 rated control unit designed for non-hazardous areas, controls a specially developed analysis unit that can operate in a hazardous area.
The Model 3020P Percent Oxygen Analyzer serves as the completely explosion proof version of the 3000 series. This unit provides superior oxygen analysis in an explosion proof enclosure rated at NEMA 4/7, U/L and CSA listed for Class I, Division 1, Groups B, C & D service.
Three user-programmable ranges and auto ranging come standard with an excellent linearity precluding the need to recalibrate when changing ranges. Fully programmable alarms provide versatility, and an array of Teledyne`s advanced Micro-fuel Cell sensors can be utilized depending on the customer`s needs - such as fast response or long life.
