Stulz Air Technology Systems, Inc.

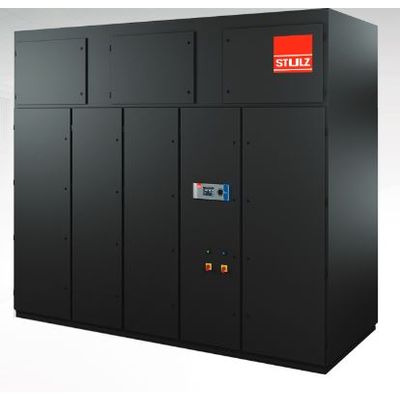

CyberAir - Model CW and DX -Perimeter Mounted Cooling Unit

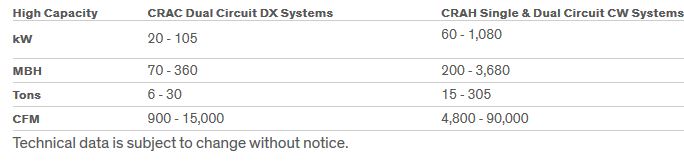

STULZ offers the broadest range of cooling capacities for chilled water (CW) and direct expansion (DX) units on the market. With 20-1,080 kW of cooling, there is an air conditioner (CRAC) or air handler (CRAH) for every mission critical application.
Most popular related searches
chilled water
hot gas
cooling system
dehumidification system
air conditioner
heat exchanger plate
medical water
seismic
water regulations
gas moisture
- Small IT rooms to large enterprise data centers
- Medical/Healthcare
CRAH - Chilled Water (CW)
- Largest capacity perimeter CW air handlers in the industry
- Greater airflow than other solutions
- Multiple EC Fan options (additional fans in same size cabinet)
- All EC Fans mounted in the cabinet meet full performance without having to be dropped into the raised floor
- Fewer units at higher capacity can significantly reduce capital cost and operating cost
- 2 x CW valves standard on CFD-510 and larger units (option for 1 CW valve)
- Dehumidification efficiently achieved through reduced air volume at maximum cooling
- Standard and seismic floor stands available for all CW units
- Filter plenums designed with increased surface area for filtration, lower pressure drop, and improved energy savings
- Standard MERV 8 filters (optional up to MERV 14 filters)
- 100% front access on all sizes
- Made in the USA
CRAC - Direct Expansion (DX)
- DX systems provided with highly efficient and reliable low noise scroll compressors
- Single or multi-stage compressor arrangement including tandem configurations
- Micro plate heat exchangers offer major improvements in heat transfer
- Optimized AWS/Free-cooling coils to closely match DX cooling capacities, increasing energy savings opportunities
- Refrigeration-based dehumidification system effectively removes excess moisture
- Hot gas reheat - provides reheat using recycled compressor heat
- Snap acting / full floating hot gas bypass system provides cooling capacity modulation and evaporator coil freeze protection
- Multiple stages of DX cooling to match load requirement
- Electronic expansion valves can be optimized to work over a wide range of conditions
- Made in the USA
