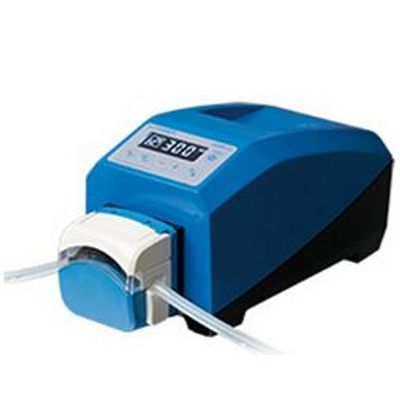

MDXModel LP-G100-1J -Peristaltic Longer Pumps

SHARE

Using aluminium alloy housing with anti-corrosion paint treatment, the pump has good corrosive resistance and longer life time in corrosive environments. With good electromagnetic compatibility, the pump will not behave unacceptably in an EM/ environment and will not interfere with other electronic equipment. With high IP rating, the pump could be used in wet and dusty environments. Using high quality electronic components, optimized software design and circuit design, the pump provides long-term reliable and stable operation. LCD with specially designed run screen displays parameters and running status, which provides enough information for correct operation . The price of pump head is not included.Please find a suitable pump head in the store.

Most popular related searches
  • Speed Orpm-100rpm, CW/CCW.
  • Speed resolution 0.1rpm
  • Display LCD
  • Control mode Keypad control, external signal control and communication control are   available.
  • External control Start/stop control, direction control: switch signal(dry contact).
  • Speed control:0-5V,0-10V,4-20mA,0-10kHz are optional with uniform   interface, max speed can be set between 10rpm and 100rpm
  • Communication control RS485 interface, Longer protocol or Modbus protocol, the communication   parameters(baud rate, parity, stop bit) can be set through keypad.
  • Parameter memory Operating parameters will be saved automatically.
  • Pump status when powered up The pump status when powered up could be set as stop or as the status   before power loss.
  • Prime Fast filing or emptying at full speed
  • EMC Comply with EMC Directive 2014/30/EU
  • Keypad lock function Keypad can be locked to prevent the misoperation
  • Dimension(LxWxH) 240×142×152(mm)
  • Power Supply AC90V-260V/20W,50/60Hz.
  • Operating temperature 0 to 40℃
  • Relative humidity <90%
  • IP rating IP65
  • Weight 3.64kg
