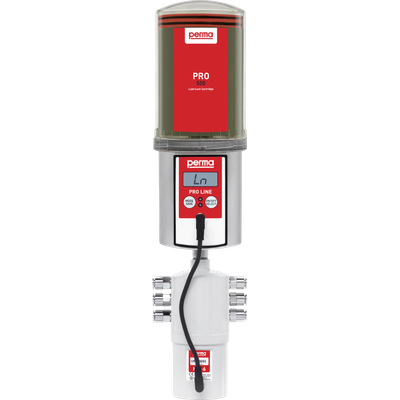

Perma - Model PRO Line -Multi-Point Lubrication System
perma PRO LINE is a special multi-point lubrication system for linear guides. Each outlet`s lubricant discharge can be adapted to manufacturer specifications. The PRO LC is available in two sizes (filled with 250 cm³ or 500 cm³ of grease) and supplies lubrication points with lubricant for up to 2 years. The high pressure build-up enables remote mounting with tube extensions of up to 5 m (per outlet). Remote mounting not only increases workplace safety, but also offers reliable, flexible and efficient lubrication while they are running.
- Flexible setting options for every outlet
- Setting via push button with display and LED
- Additional discharge
Main applications for the multi-point lubrication system perma PRO LINE are linear guides. Application fields range from various linear guide and drive units in all kinds of industries - from automotive to paper. Other applications are roller and sliding bearings, open gears and spindles.
- Drive: Electromechanical
- Power supply: Battery PRO B
- Housing: Metal / Transparent plastic
- Discharge period: Pause time in days (24 h) / Discharges for each outlet
- Lubricant volume: 250 cm³, 500 cm³
- Operating temperature: -20 °C to +60 °C
- Pressure build-up: 25 bar
- Number of outlets: 1 - 6
- Lubricants: Grease up to NLGI 2
- Max. tube lengths: 5.00 m
- CE: ✓️
- UL: ✓️
