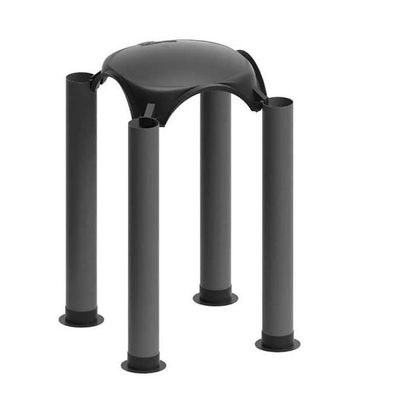

Atlantis Tank - Permanent Formworks for Rainwater Collection Tank and Dispersion Tanks
The rainwater storage tank formed with Atlantis Tank is a remedy for a urban flood control.
The tank formed with Atlantis Tank can be laid underground so as to create a green area on top, or it can be directly loaded for the transit of vehicles, also heavy.
The main features of the Atlantis Tank system are speed, simplicity and cost performance.

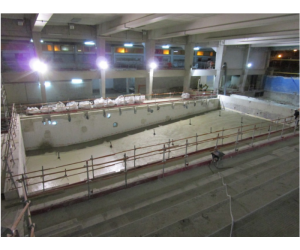

Atlantis Tank is the ideal solution to create tanks cast on site for the collection and/or the dispersion of water for the renovation of swimming pools.
Atlantis Tank allows the realization of a tank in the reinforced concrete of a maximum height of 300 cm. Thanks to the elevator pipes provided to measure, it is the ideal system for creating multi-level or sloping surfaces.

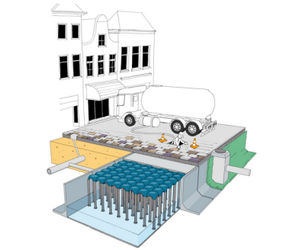

The tank made of Atlantis Tank is drivable and it can be implemented under squares, streets and parking lots, both commercial and industrial.

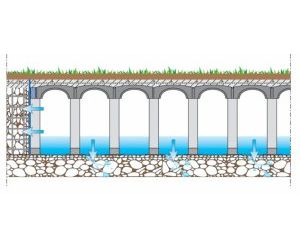

The dispersion tanks with Atlantis Tank are intended to mitigate the effect of floods caused by exceptional weather events.
In the case of collection tanks, the accumulated rainwater can be reused for all those applications that do not require drinking water, such as garden irrigation, fire pumps, toilet flush, house and personal cleaning, ecc..
Atlantis Tank 50×50 – H 56 / H 300 cm
- Working dimensions: cm: 50 x 50
- Dome height: cm: 16
- Leg height: cm: from 40 to 284
- Quantity of concrete to the crown*: m3/m2: 0,034
- Pallet dimensions*: cm: 110 x 110 x 250 h
- Sq.mt. per pallet*: m2/PAL: 75
- Pieces per pallet*: pcs/PAL: 300
- Pallet weight: kg/PAL: 510
*Referred to the dome only.
The product is not affected if weathered.
Atlantis Tank 71×71 – H 56 / H 300 cm
- Working dimensions: cm: 71 x 71
- Dome height: cm: 15
- Leg height: cm: from 41 to 285
- Quantity of concrete to the crown*: m3/m2: 0,033
- Pallet dimensions*: cm: 76 x 149 x 259 h
- Sq.mt. per pallet*: m2/PAL: 115
- Pieces per pallet*: pcs/PAL: 230
- Pallet weight: kg/PAL: 728
*Referred to the dome only.
The product is not affected if weathered.
Atlantis Tank 100×100 – H 56 / H 300 cm
- Working dimensions: cm: 100 x 100
- Dome height: cm: 12
- Leg height: cm: from 44 to 288
- Quantity of concrete to the crown*: m3/m2: 0,028
- Pallet dimensions*: cm: 110 x 110 x 250 h
- Sq.mt. per pallet*: m2/PAL: 70
- Pieces per pallet*: pcs/PAL: 70
- Pallet weight: kg/PAL: 740
*Referred to the dome only.
The product is not affected if weathered.
