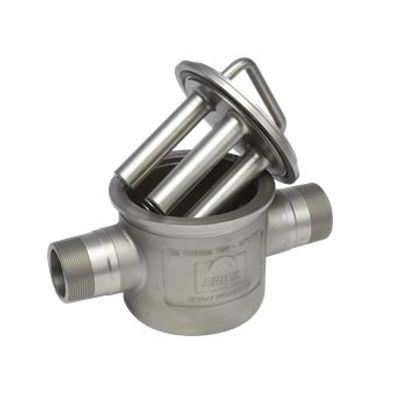

Eriez - Model Super B -Permanent Magnetic Trap
For 2" (51 mm) through 4" (102 mm) Pipelines. The magnetic element, consisting of a group of magnetic tubes, is arranged to cause the material flow entering the body to impinge against the tubes and filter through the magnetic field, completely covering the open area. This arrangement takes advantage of the material change in direction and the difference in inertia between the unwanted iron and the material carrying it. The magnetic circuit is designed so the entrapped iron will have a tendency to work around and cling to the down–stream side of the tubes. This action prevents iron particles from being washed off by the continuous flow of material.
Protect your flow lines and products with the world’s finest liquid handling magnetic separators. Prevent abrasive wear, prevent pumps from jamming and assure yourself a product free of iron contamination... achieve the iron contamination protection your particular operation requires – whether it be a tiny 1/2–inch (13 mm) pipeline or a huge 30–inch (762 mm) diameter line, Eriez has a magnetic circuit to provide the protection that will serve you best.
All models of Ferrous Traps have a constant powerful magnetic circuit designed to attract and hold iron contamination. Clean, simple designs have no moving parts... powerful, permanent magnetic element will perform well handling materials with temperatures up to 150°F (65°C), with special models available for temperatures to 850°F (454°C).
Xtreme® Traps
The Xtreme® style Rare Earth (RE) separators available from Eriez remove weakly magnetic or very fine iron contaminants. Eriez Rare Earth develops a magnetic field up to 25 times the strength of conventional ceramic magnet material. All models of Eriez trap magnets are available with Xtreme elements.
