AMI - Model 210BX -Permanent Mount Percent Oxygen Analyzer
The MODEL 210BX is AMI’s most advanced Percent Oxygen Analyzer. This next generation unit combines patented technologies and superior design to deliver unsurpassed performance and reliability while keeping costs low. The MODEL 210BX is the #1 choice among engineers and measurement technicians.
The MODEL 210BX is AMI’s most advanced Percent Oxygen Analyzer. It combines patented technologies and superior design to deliver unmatched performance, reliability and ease of use.
Patented Eliminator Cell Block™
The patented design offers the most efficient gas path in the industry by combining all of the critical sample handling components, including a flow meter, metering valve, 3-way gas control valve, sensor pocket and pressure sensor, into one solid cross drilled block. Sample gas only needs to travel 4 inches before reaching the sensor, resulting in a 400% faster response time.
Designed For The User
This virtually maintenance-free Analyzer with front-loading O2 sensor, intuitive controls and compact size make installation, maintenance and operation of the MODEL 210BX the easiest of any Percent Oxygen Analyzer in its class.
Proprietary O2 Sensor Technology
AMI’s patented P Series oxygen sensors deliver extremely fast response, high reliability and long life. Every sensor undergoes a battery of tests in our factory to guarantee that they meet our strict quality and performance standards. Our P Series percent oxygen sensors are designed to enhance the superior performance of the MODEL 210BX Analyzer.

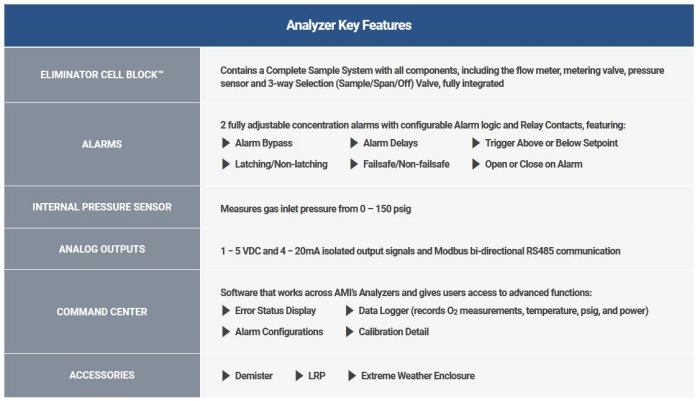

Full Suite of Standard Features
The MODEL 210BX comes standard with advanced features, including dual independent alarms, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass and 3 levels of security settings. Automatic data logging provides detailed time-stamped records of O2 measurement, gas pressure, temperature, supply voltage and power brown-out history.

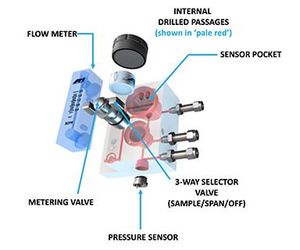

Eliminator Cell Block for a Leak-Free Design
The patented ELIMINATOR CELL BLOCK™ provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross-drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. Additionally, a uniquely engineered 3-way selector valve (Sample/Span/Off), metering valve, pressure sensor and flow meter are all integrated into the ELIMINATOR CELL BLOCK. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the analyzer, all without the need for disassembly or tools.

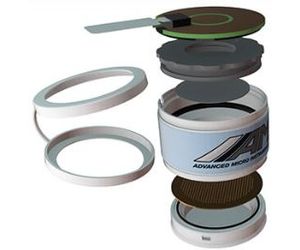

Proprietary Sensor Technology
AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in inert or flammable gas streams, even when containing high levels of H2S - up to 500 ppm, for their entire warranted life. This eliminates the need for a maintenance intensive H2S scrubber that competitive oxygen analyzers require.
All the Advanced Features for One Low Price

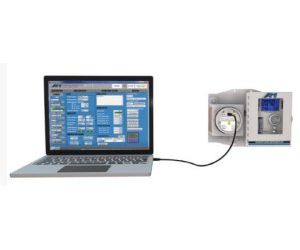

The MODEL 210BX Percent Oxygen Analyzer comes loaded with a full suite of advanced features without the typical ‘up charges’. The standard features include: 4-user selectable analog output ranges, large backlit LCD, dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. Automatic data logging provides detailed time- stamped records of O2 measurement, gas pressure, temperature, supply voltage and power brown-out history. All these features can be accessed with AMI’s powerful COMMAND CENTER software, which works universally across all AMI analyzers.
