Hermes - Personal Mercury Monitor
From2B Technologies

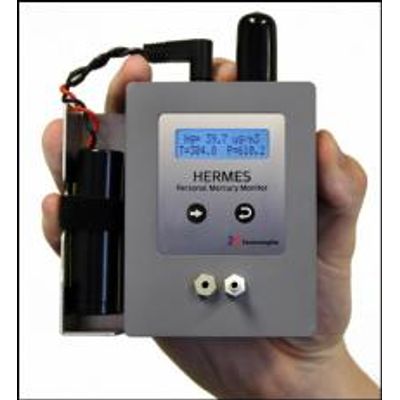

2B Tech has taken the next step in miniaturization of UV-based mercury monitors by developing the HERMES Personal Mercury Monitor or "PMM." The HERMES has dimensions of 4 x 3 x 1.5 inches and weighs only 0.75 lb (340 g). It has a built in GPS so that mercury measurements may be logged continuously along with geographic location. By folding the optical path in the shape of a "U," it was possible to achieve a 15-centimeter path length, enabling extremely sensitive measurements of mercury in ambient air.
Most popular related searches
mercury monitoring
NIST traceable calibration
ambient air mercury
personal monitoring
ambient air system
personal exposure monitoring
traceable calibration
mercury analysis
exposure monitoring
air mercury
- Monitoring of exposure to individuals in the workplace
- Monitoring and control of mercury in industrial settings
- Personal exposure monitoring for studies of health effects of air pollutants
- Long-term monitoring at remote locations where power is highly limited
- Measurement Principle: UV Absorption at 254 nm
- Linear Dynamic Range: 0 to 2,000 μg/m3
- Resolution: 0.1 μg/m3
- Precision (1σ rms noise): Greater of 0.1 μg/m3 or 2% of reading (in 10-s measurement mode)
- Limit of Detection (2σ): 0.2 μg/m3 (in 10-s measurement mode)
- Accuracy: Greater of 0.1 μg/m3 or 2% of reading
- NIST-Traceable Calibration: Yes
- Measurement Interval: Fast mode: 2 s
- Measurement mode: 10 s
- Data averaging options: 1 min, 5 min, 1 hr
- Flow Rate (nominal): ~0.8 Liter/min
- Flow Rate Requirement: >0.5 Liter/min
- Baseline Drift: < 0.1 μg/m3/day
- < 5 μg/m3/year
- Sensitivity Drift: < 1%/day
- < 3%/year
- Measurement Time, Frequency: Fast mode: 2 s, 0.5 Hz
- Measurement mode: 10 s, 0.1 Hz
- Response Time, 100% of Step Change: For 2-s output: 4 s, 2 points
- For 10-s output: 20 s, 2 points
- Averaging Times: 1 min, 5 min, 1 hr
- Data Storage: 8,192 lines
- (2-s fast mode ~4.6 hr; 10-s meas. mode ~1 day; 1-min avg ~6 days; 5-min avg ~1 mo; 1-hr avg ~1 yr)
- Mercury Units: ppb, µg m-3
- Pressure Units: torr
- Temperature Units: K
- T and P Corrected: Yes
- Operating Temperature Range: 0 to 50 °C
- Operating Altitude Range: ~0-13.5 km (150-1,013 mbar)
- [modifications for higher altitudes available as an option]
- Power Requirement;
- Supplied by battery or 110/220 VAC Power Pack: 7-24 V dc, nominally 250 mA at 12 V, 3.0 watt
- External Battery: 7.4 Volt, 1.6 amp hour, Lithium Ion Battery, 5-8 hr
- Size: 4.0 x 3.0 x 1.5 inches (10.2 x 7.6 x 3.8 cm)
- Weight: 0.75 lb. (0.34 kg)
- Data Transfer Baud Rate: 19200
- DewLine™: Yes
- GPS: Yes
- Sampling Probe: Available as an option
- HERMES™ Personal Mercury Monitor™
- AC Power Adapter (100-240 VAC to 12 VDC) with Country-Specific Plug
- Cigarette Lighter Adapter
- 7.4 V Lithium Ion Battery
- Battery Charger
- Serial Port Cable
- USB Cable
- Zeroing Cartridge
- USB stick with Operation Manual, 2B Display Software, and USB Driver
- Instrument Birth Certificate
- Calibration Data and NIST-Traceable Calibration Certificate
- One Year Warranty
