TA - Model PET-CAM-511 -Pet Facility Radiation Monitoring System

Electronics:

• Plug-in modules allowing change or addition of function as needed and allowing rapid repair by substitution of modules in the field.
• The modular system is covered by T/A’s unique exchange warranty, in addition to the full one year warranty covering all T/A products.
• Computer with 17” COLOR LCD Monitor.

Shields:

• Void free lead encased in welded steel with stainless steel liners for long, useful life and easy decontamination.
• Open for filter change or cleaning with minimum effort.
• All connections and openings sealed against air leaks.
• Filters are easily changed via quick disconnect, o-ring sealed filter holder
• Air Moving System is based on a high capacity oil less air pump capable of delivering 120 lpm (4cfm) free air including Real Time flow rate measurement and data analysis

• Complete pet facility air monitoring system
• Real-time continuous
• 9 detection channels
• 2 area monitors
• Easy integration into facility infrastructure
• High capacity oil-less air pump
• Detection of:
• Positron
• Particulate beta/gamma
• Iodine
• Noble gases
• 3 in-process detector monitors: ducts or
• Charcoal traps
• Final release stack monitor has 3 detectors
• Physically separates and monitors contaminants
• Into:
• Particulates
• Airborne chemicals
• Airborne aersols
• Noble & inert gases
• Rugged skid or caster mounted

The System Consists Of 3 Sub-Systems.
1. Main console including final release sensors.

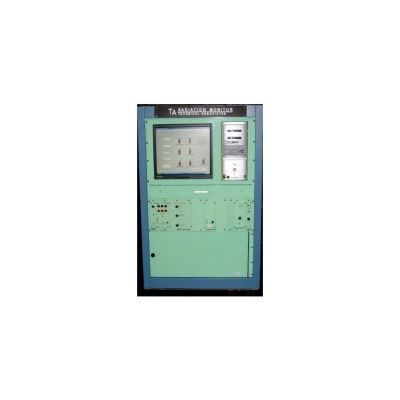

• The entire system is mounted in a self-contained rugged cabinet and comes complete with all cabling, connectors, and software in place, setup, and ready to operate.
• The standard unit is operated from 115 V single phase, 60 Hz; 220V optional, 50 or 60 Hz.

2. Interactive control station computer with full read-outs and alarms can be placed in control room or RAD supervisors’ office, etc.
3. In-Process & Area Monitor Detectors- report to the main control (1) and to control station (2).
