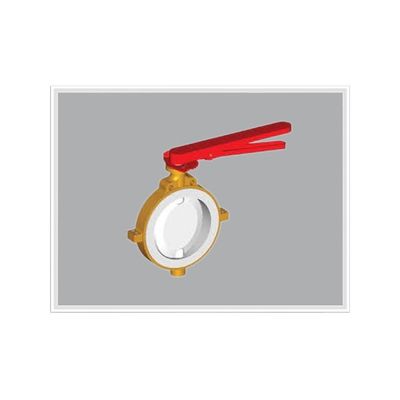

Faab - Model BFV -PFA / FEP Lined Butterfly Valve

• Product Name: PFA / FEP LINED BUTTERFLY VALVE
• Product Code : BFV
• Product Display Name : LINED BUTTERFLY VALVE

SIZE RANGE: 2” – 12”
MATERIAL OF CONSTRUCTION:
BODY: Ductile Iron A395 or WCB A216, Lining PFA – D3307 Type II or FEP – D2116 Type III
DISC LINING: PFA – D3307 Type II or FEP – D2116 Type III
DISC INTEGRAL STEM: SS A351CF8M,
SEAT: Virgin PTFE – D1457
SEAT BACKUP: EPDM / Silicon
HANDLE UNIT: S. G. Iron EN 15-63 No. EN-JS1050 / Processed Carbon Steel
SURFACE: External surface are painted with Red oxide primer.
