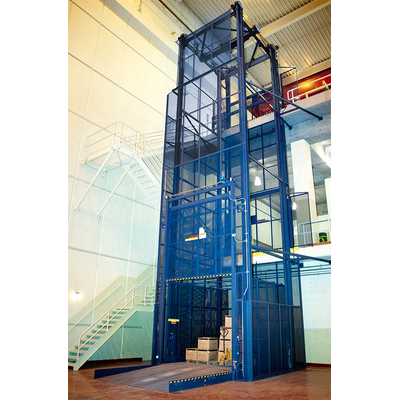

Pflow - Model F Series -Vertical Reciprocating Conveyor (VRC)

The F Series vertical reciprocating conveyor is ideal for lifting multiple pallets, oversized materials, large carts, or heavy machinery between two or more levels, indoors or outdoors.

Lifted and lowered by heavy-duty roller chains, the F Series VRC, is built to meet your specific application and is virtually limitless.

F Series 4-Post Lift Overview

• Standard weight capacity up to 50,000 lbs (customizable to 200,000 lbs)
• Unlimited carriage size (minimum size of 6’ wide x 6’6” long)
• Unlimited vertical rise
• Standard travel speed is 18 feet per minute
• Unlimited, continuous cycles
• Indoor or outdoor use
• Lifetime structural warranty
• Conforms to ASME B20.1 Safety Standards

Advanced safety features are built into each F Series VRC

• Limit switches that shut down the motor and engage the brake when the switch is tripped or power is lost
• Motor overload protection prevents excessive current draw
• Chain sensors prevent slack chain from jumping the sprockets
• Safety cams that prevent unintended carriage descent

• Carriage is lifted and lowered by heavy-duty roller chains attached to a mechanical lifting mechanism on top of 6″ guide columns
• Quality construction, reliability, and long-term performance
• Certified safety cams prevent carriage descent in the event of a chain failure, protecting workers and materials
• Optional DeckLock Safety System provides added security at critical upper levels
• Optional hot-dipped galvanized or epoxy finish for outdoor or wash-down environments
• Explosion-proof components are available
