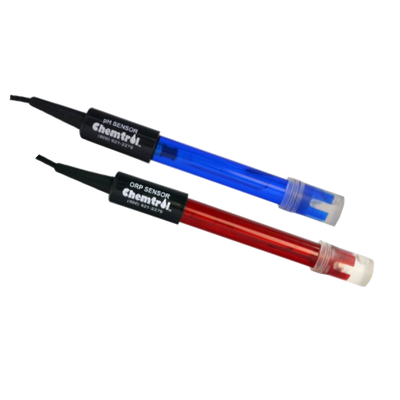

Chemtrol - Model 12mm -pH/ORP Sensors

Designed for rugged pH/ORP service applications, the bodies of these electrodes are made from impact resistant epoxy tubing. The electrodes are designed with Ag/AgCl gel-filled/ sealed reference and dual ceramic pin wicks to offer excellent results with minimum maintenance. They also include low noise coaxial cable with dual shields. The pH electrodes utilize a GP bulb glass, featuring fast response over the range of 0–12 pH. The ORP electrodes include a solid platinum band fused to its bulb glass for optimum reading. The electrodes can be used continuously 0–60°C, and intermittently up to 100°C. Maximum pressure is 60 PSI.
