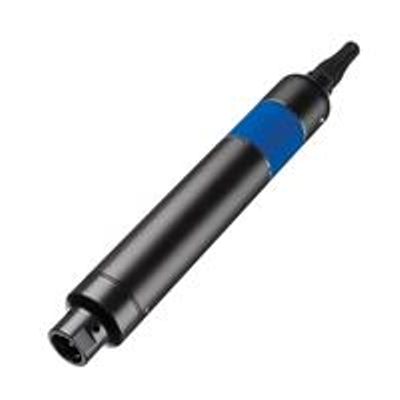

Aquamonix - Model PH1000 -pH Sensor
FromAquamonix
The sensor features a field replaceable, gel-filled pH electrode. The electrode’s reference is protected by a special porous PTFE ring which is impregnated with a special conductive gel. The protection ring prevents chemical or biological fouling from reaching the reference, extending the life of the combination electrode. At the end of its life, the electrode can be replaced by the user in the field without the need to return the sensor to the factory.
Most popular related searches
water quality and level sensor
pH sensor
wastewater treatment monitoring
water quality
groundwater monitoring
groundwater analysis
level sensor
pH electrode
sewer monitoring
glass electrode
- Measurement Technique: Gel-filled glass electrode with internal Ag/AgCl reference, Field Replaceable electrode
- Sensor range (factory calibrated): 0–14 pH (4 mA = 0 pH, 20 mA = 14 pH)
- Sensor output: Analogue 4-20 mA
- Power Supply: 11-13.2V DC
- Dimensions (L x OD) 364.5 mm × 47 mm (14.35″ × 1.85″)
- Sewer monitoring.
- Monitoring of streams and rivers, lakes and urban waterways.
- Catchment studies and forestry management.
- Water supply storages including stratification studies.
- Water and wastewater treatment monitoring.
- Groundwater analysis and monitoring.
- Industrial process, Acid Sulphate studies
- Tidal, estuary and oceanographic monitoring
