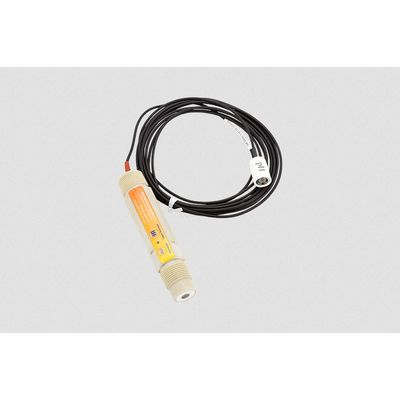

BWB+ISI - Model OCPF81-LH21E21-ISI -pH Sensor with 3/4 MNPT Housing for Flow and Immersion

FromBWB Technologies USA LLC

SHARE

OCPF81-LH21E21, pH sensor with 3/4” MNPT housing for flow and immersion installations, 15’ cable and BNC. Patent Number 4,128,468 Bukamier, Patent Number 4,333,812 Bukamier, Rupert.

Most popular related searches

industrial sensor

glass treatment

surface cleaning

Porous Teflon junction delivers high performance and low maintenance
Double chamber reference system prevents fouling in harsh industrial conditions
Durable 0-14 pH sensitive glass can withstand CIP treatment and operating temperatures up to 110°C, 230°F
Self-cleaning flat surface pH membrane option (see OCPF81-LH11E21)

This feature was patented by Innovative Sensors in 1982 and is available on most industrial sensors
Competitor’s sensors require mounting 15 degrees off horizontal. The expansion air bubble that exists in the pH sensing internal can migrate to the tip of the sensor and cause an internal disconnect
Internal plunger allows for expansion of the liquid without the need for an air bubble
Enables mounting in any configuration (360 degrees)
