PID Analyzers - Model 40 -Infrared CO2 Analyzer

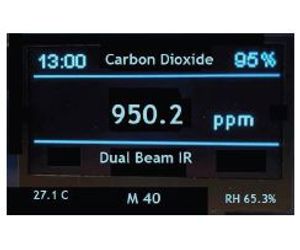

1. Large bright 2.4" OLED Display
2. 64 bit ADC for accuracy over 0-10,000 ppm
3. Rechargable LiPO battery
4. RS232 with 1,500 data points
5. Optional datalogging with BT, > 100,000 additional data points and real time clock
6. RH & T measurements to check HVAC operation

Air Quality Monitoring in:

• Offices, homes, schools buildings,
• Greenhouses & hydroponic gardeners
• Breweries & Wineries
• Marijuana growers greenhouses
• CO2 separation plants
• Storage safety where CO2 tanks are located
• Safety monitoring for in breweries
• Model 40 for monitoring CO2 in natural gas

Connect to-PC, Server or use Optional Bluetooth

Company Background
HNU Systems, Inc. introduced the first commercial photoionization based instrument in 1974. In 2003, we became an LLC- PID Analyzers, LLC. Nearly 40,000 of the portable PID’s and and laboratory PID`s have been sold throughout the world. Dr. Jack Driscoll, inventor of the PID, received the AIHA Edward Baier award in 2017 (https://bit.ly/2rRG6M8) for the development of the PID for industrial hygiene measurements. We have been selling CO2 Analyzers for nearly 15 years to markets like, Landfill, indoor air quality and industrial applications for ppm to % levels. We have redesigned our Analyzers to provide lower cost CO2 analyzers with significant additional features

The technique for measuring the concentration depends upon the Lambert Beer Law: I = I_o e-_kx

Where- I is the measured intensity, Io is the incident intensity, k is the absorption coefficient, and x is the pathlength

This dual beam sensor absorbs Infrared radiation at the 4.3 microns region (CO₂ absorption). A reference wavelength (at 3.8 microns) provides an exceptional baseline for the IR source providing very stable measurements.

• Detector Type: Dual Beam Infrared sensor for CO₂
• Power: Rechargeable 3.7 V LiPO battery
• Display 2.4” Bright OLED: Dimensions 6 1/8" x 3 5/8" x 1.57”
• Accuracy of Measurements: +/- 2%
• Operating temperature: 0-50 C
• Certifications: CE, RoHS
• Analog channels: 16 bit ADC for best precision & accuracy
• Electrical classification: General purpose, not for hazardous area
• Outputs RS232: can be used to transfer the limited 1,500 points to a PC via a USB cable
• Datalogging-optional 100,000 data points includes Bluetooth, RTC, memory; select BT on to transfer data to PC
• Alarm Audible, visual (blinking display)
