PID Analyzers, LLC products

The Model 102 is a considerably upgraded replacement for our Model PI101, HW101, DL101, 101N, & IS101; It has enhanced features such as a faster response time, extended range, elimination of any moisture sensitivity, capability of having up to 4 sensors plus a ppb range, and improvements such as a pump & datalogging (see below). The Model 102 Snap-On PID™ Photoionization Analyzer is a single piece, hand-held unit for the measurement of organic and inorganic species that can be ionized by the UV lamp (9.5, 10.6 & 11.7). This includes the choice of one (1) Snap-On Module (9.5, 10.2, 10.6, 11.7 eV lamp), Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery.

The Model 102+ is a considerably upgraded replacement for our Model PI101, HW101, DL101, 101N, & IS101; It has enhanced features such as a faster response time, extended range, elimination of any moisture sensitivity, capability of having up to 4 sensors plus a ppb range, and improvements such as a pump & datalogging (see below). The Model 102 Snap-On PID™ Photoionization Analyzer is a single piece, hand-held unit for the measurement of organic and inorganic species that can be ionized by the UV lamp (9.5, 10.6 & 11.7). This includes the choice of one (1) Snap-On Module (9.5, 10.2, 10.6, 11.7 eV lamp), Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery.

The Model 107+ is a Stack Gas Analyzer that can measure high ppm or % levels of combustion gases such as SO2, NO, NO2 CO, O2 & CO2 and has the capability to add up to 4 sensors: CO2 plus 3 EC sensors. The Model 107 includes the choice of one CG Snap-On Module with one EC sensor plus 2 optional electrochemical sensors and one optional IR sensor for CO2, datalogging, Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery. The main application is combustion efficiency and emissions checking.

The Model 108+ is a Landfill Gas Analyzer that can measure high ppm or % levels of gases such as CH4 & CO2, O2 & H2S
The Model 108 includes two IR sensors for CH4 & CO2 with 2 additional electrochemical sensors for O2 & H2S, datalogging, Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery. The main application is checking the composition of landfill gases.

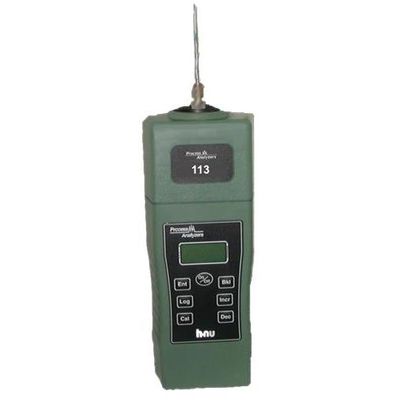

The Model 113+ is a EC based Analyzer that can measure up to ppm to% v/v of components and has the capability to add up to 2 EC sensors and a CG or TCD sensor. The Model 113 includes the choice of one Snap-On Module plus up to 1-3 optional electrochemical sensors an an optional TCD or CG sensor , datalogging, Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery.

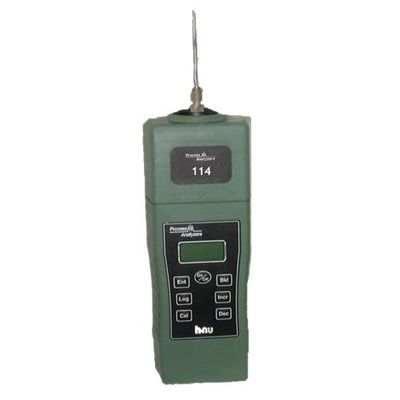

The Model 114 is an IR based analyzer that utilizes interchangeable IR sensors (for CO2 and CH4) for low range or high range (0-100% v/v). The Model 114 includes one IR sensor for CH4 or CO2 with up to 3 optional electrochemical sensors, datalogging, Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery. The main application is checking the composition of landfill gases.

The Model 115 is an FID based Analyzer for measuring total hydrocarbons including methane to 50,000 ppm. It has enhanced features such as a faster response time, extended linear range and datalogging (see below). The 115 includes the choice of one (1) Snap-On Module with FID, Operator`s Manual, and Rechargeable Nickel Metal Hydride Battery.

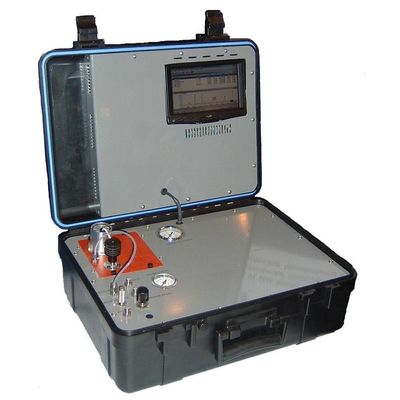

PID Analyzers offers a new lightweight portable GC for environmental, quality control, natural gas... applications. The base Model 312 comes with syringe injection, oven, power supplies & Pentium PC with Windows XP (embedded) and PeakWorks chromatography software in a rugged plastic case.

The Model 112 is a low cost continuous VOC Analyzer. It has an optional 4-20 mA output, a single programmable setpoint, larger pump & an industrial NEMA 4 enclosure. This 112 the choice of one 9.5 or 10.6 eV lamp, Operator`s Manual, configuration software and RS232 cable.

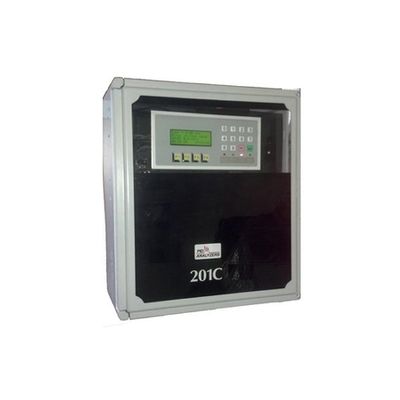

The Model 201C is a continuous VOC Analyzer designed for continuous or process control. It has optional 4-20 mA output, RS485, MODBUS, 2-4 programmable setpoints, larger pump, bypass flow & and a 19” rack or industrial wall mount NEMA 4 enclosure. This 201C has the choice of one 9.5 or 10.6 eV lamp in a PID or an FID, Operator`s Manual, configuration software and RS232 cable. The detectors are the PID or FID.
