BSP-TEX - Model JX -Piling Rig
FromBSP-TEX

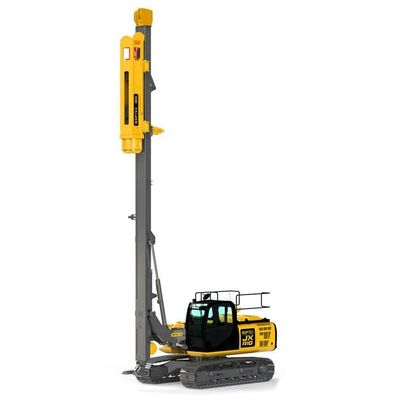

The JX Piling Rig is mobile, self-erecting and radiocontrolled. The rig is mounted on a JCB base unit, uses a 12.5m single piling mast, and any one of the three BSP-TEX hydraulically accelerated piling hammers from the DX range. The JX Piling Rig is capable of driving steel, wood or concrete piles up to 8m in length.
Most popular related searches
A primary braked piling winch carries the 3.9-5.5t piling hammer, and a secondary winch is used to handle the piles. The rig also incorporates a mast foot and pile guide. Refer to the DX hammer range data sheet for more detailed information.
- Mobile and self-erecting
- Radio-controlled option available
- Uses hydraulic hammers from the DX range
- Double acting cylinder produces high impact energy and fast blow rate
- Economical - low hydraulic power requirements
- Available with synchronised hammer and pile winches
- Working Height (m): 13
- Max Pile Length (m): 8
- Base Unit Model: JCB 220X-LC
- Engine Type: Ecomax
- Power Output (kW): 129
- Track Pad Width (mm): 700
- Track Footprint (m): 4.46 x 3.10
- Operating Radius (m) CL Rotn to Pile: 3.64
- Operating Weight (kg) incl. hammer and max pile: 30300
- Transport Weight (kg) incl. hammer: 28600
- Transport Length (m): 12.38
- Transport Width (m): 3.10
- Transport Height (m) incl. hammer: 3.60
- Compatible BSP Hammers: DX20-30
- Engine Emission Status EU: Stage-v
- Engine Emission Status EPA: Tier 4
