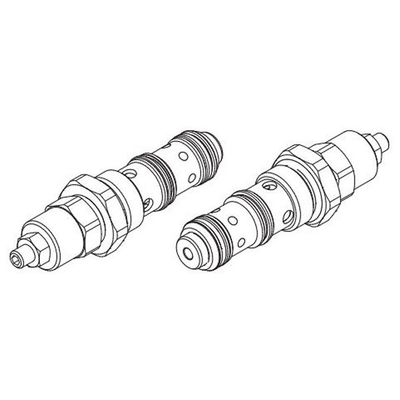

CBF - Model OVC60-C -Pilot Assisted Overcentre Valve, Cartridge Type
FromCBF S.r.l.
Pilot assisted overcentre valve, cartridge type; Maximum flow : 60 l/min. Maximum pressure : 350 bar. Standard pilot ratio : 4,25:1. Pilot ratio upon request : 3:1 8:1 10:1. Tightening torque : 110÷120 Nm.
- Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C
- Recommended viscosity 10 ÷ 420 cSt
- Working temperature -20 ÷ +90 °C
- Absolute filitration 25 μm
- Ordering examples: OVC60C02
