AQUA|FLEX - Model 150R -Pilot Systems
The AQUA|FLEX 150R is an extended version of the AQUA|FLEX 100. Waste heat is recovered by using an extra heat exchanger which results in a more energy efficient system. This system is designed for medium to large scale applications. Extra modules can be added to enlarge the total capacity of this system.
Multiple Configurations

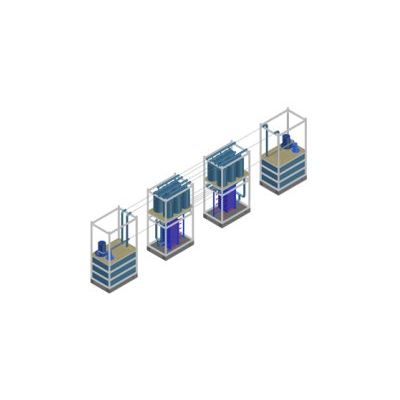

For large commercial plants we use standard building blocks, the same used for the AQUA|FLEX 100 and AQUA|FLEX 150R units. By placing several units next to each other, this approach provides great flexibility, reliability, and variability in the production capacity for the customer. The system can be installed quickly and expanded to suit customers’ needs. For specialized full-scale industrial configurations, please contact us to discuss the possibilities in detail.
ENGINEERING
Feed/bleed block an distillate production block
For the feed/bleed block and the distillate production block we use a standardized unit consisting of two tanks; a circulation pump; a discharge pump; the transmitter for flow, temperature, and pressure measurements; and an E-cabinet.
Heat input block and heat removal block
These blocks consist of two levels, whereby the lower level provides or discharges heat by means of a heat exchanger and the upper level holds six membrane modules. Piping trays are integrated on the skid for feed and discharging of the modules.
Heat regeneration block
This block can be added to the above four blocks when there is a need for heat regeneration. An extra heat exchanger regenerates the heat that is lost due to water evaporation in the membrane modules. The heat exchanger is installed on the first level and extra optional membrane modules can be installed on the second level of the pallet.
