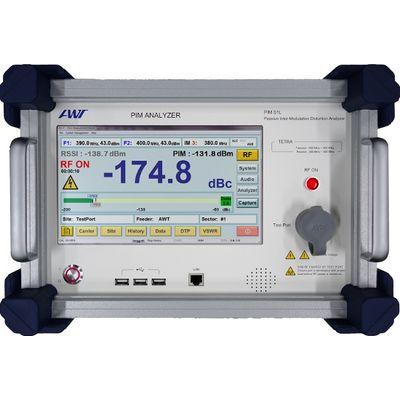

AWT - PIM Analyzers for TETRA and 380-470 MHz Band (UHF)

• Test Modes: Field Mode, Analyzer, multi PIM display, Rx sweep, PIM vs. Time, Single Carrier for Insertion Loss (IL) measurements.
• Embedded DTP option: Distance-to-PIM, VSWR, DTF
• High PIM sensitivity: -163 dBc @ 2x 43 dBm carriers.
• Data recording: CSV, PDF, BMP screen shots.
• Output power adjustable 2x  15dBm to 44dBm.
• Large 10.2″ Touch Screen Display.
• Convenient One-Body-Solution

Low PIM components and installations are particularly important for highest network capacity and reliable transmission.  Signal degradation caused by PIM effects reduces data capacity and can lead to interrupted and even dropped calls.

PIM S1L TETRA & UHF analyzers ideal for component testing in laboratory and quality assurance, but are also valuable field tools, providing vital test results in TETRA & UHF networks. Specifications and measurement accuracy are exceptional and of PIM S1L analyzers deliver reliable results. They are very easy to operate; just the touch of a button to start predefined tests.

Our PIM S1L analyzers deliver constant CW Power signals during PIM measurements. This makes them fully conform to PIM specification IEC 62037, the standard for PIM testing. PIM S1L analyzers offer variable measurement signal output power from 15 dBm to 44 dBm. They provide even a Single-Carrier-Mode, ideal for Insertion Loss and coverage measurements.

Market leading dynamic range and low receiver noise level makes these analyzers perfect for testing, pinpointing and eliminating PIM. Results can be stored as PDF, BMP screen shots, or as CSV files. Our patented DTP measurement is highly accurate, and immediately available just at the push of a button.
