Blackhawk - Model BH-ADP-14e_TI-20e_cTI -Pin Converters

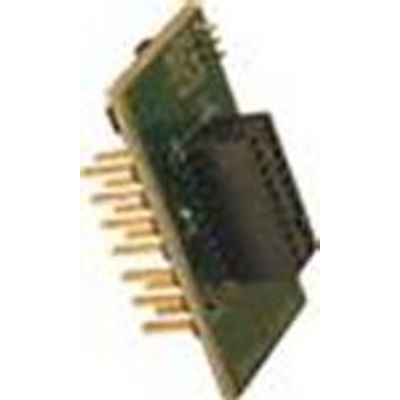

Blackhawk provides several different emulation adapters to fit Texas Instruments standard JTAG target headers. Below is a list of emulation adapters currently available from Blackhawk or an authorized Blackhawk Reseller. Converts the standard 2x7 14-pin JTAG connector found on most XDS510 emulators to the 20-pin compact TI (cTI) target header. Emulator Connector: TI 14-pin JTAG - 2x7 header  (0.100”spacing). Target Connector: TI cTI JTAG - 2x10 socket (0.050 x 0.100”spacing).
