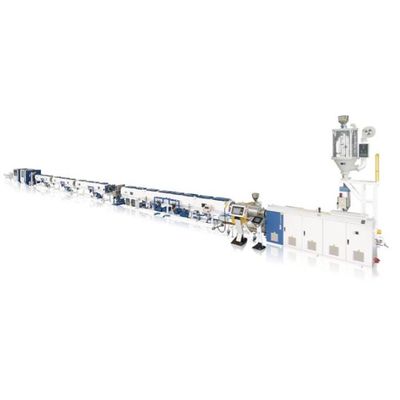

JWELL - Model RTP -Pipe Production Equipment for Reinforced Thermoplastic Pipes
The RTP Pipe Production Equipment by Suzhou Jwell Machinery Co., Ltd. is engineered to manufacture Reinforced Thermoplastic Pipes (RTP) through an advanced one-step production process. This process enhances efficiency by eliminating repeated uncoiling and transportation, and ensures continuous pipe production up to 315 mm in diameter. The equipment supports a variety of reinforcing materials, enabling the production pipes to handle working pressures over 15 MPa. The system excels in RTP structure design, offering sophisticated multi-layer winding and wrapping techniques, supported by advanced process control software. RTP pipes, benefiting from high flexibility and a pressure-bearing capacity exceeding 60 MPa, are typically utilized in demanding applications like oil and gas transportation and municipal water systems.
JWELL RTP Pipe Production Equipment is a specialized machinery designed for the manufacturing of Reinforced Thermoplastic Pipe (RTP). This equipment is essential for producing high-quality RTP used in various industries such as oil and gas, mining, and municipal water distribution.
- Port: Shanghai, China
- International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
- Terms of Payment: LC, T/T
- Certification: CE, ISO, UL, QS, GMP
- Warranty: 1 Year
- Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
RTP pipe is known as reinforced thermoplastic pipe, the inner thermoplastic pipe, the material for PE80, PE100, PA, PERT and PVDF and other thermoplastics, the intermediate layer for a specific angle of intertwined layers of reinforcing materials, materials such as aramid fibers, polyester fibers, glass fibers and steel wires, etc., the outer layer of the protective layer, generally for the addition of the anti-aging and UV resistance of the HDPE layer. RTP pipeline has good flexibility and high pressure-bearing capacity, burst pressure is greater than 60Mpa, working pressure can reach 32Mpa, can coil supply, long distance without joints and fast laying, mainly used for oil, natural gas, high pressure water and special fluid transportation field.
Composition
The RTP Pipe Production Equipment consists of several key components, including an extruder, a heating system, a cooling system, and a forming machine. The extruder is responsible for melting the thermoplastic material, while the heating system maintains the optimal temperature for extrusion. The cooling system rapidly cools the extruded pipe to ensure its dimensional stability and strength. Finally, the forming machine shapes the pipe according to the desired specifications.
Main advantages of RTP pipe production equipment
RTP pipe production equipment has many significant advantages, making it the first choice for many industries:
- High strength: RTP pipes are reinforced with steel wire mesh skeletons, which have excellent pressure resistance and durability and can operate stably for a long time in high-pressure and high-temperature environments.
- Corrosion resistance: RTP pipes are made of special thermoplastic materials with excellent corrosion resistance and can be used in harsh environments for a long time without being affected.
- Lightweight and efficient: RTP pipes are lighter than traditional pipes and are easier and faster to install, saving transportation and construction costs and improving work efficiency.
- Strong customizability: RTP pipe production equipment has a flexible production line, and pipes of different sizes and specifications can be customized according to customer needs to meet the requirements of different projects.
- Environmental protection and energy saving: Advanced production technology is used in the production process of RTP pipelines, which reduces energy consumption and waste generation, and meets modern environmental protection requirements.
