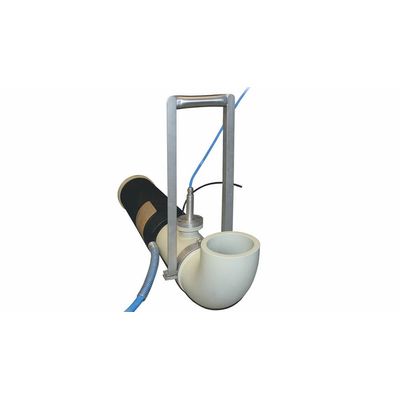

NIVUS - Model II -Pipe Profiler

The measurement system ensures highly accurate determination of flow rates even under difficult conditions such as low flow volumes or poor hydraulic flow conditions.

• Verification of channel utilisation
• Calibration basis for hydraulic calculation models
• Determination of required renovation extents
• Determination of required reservoir volumes (retention basin)
• Introduction of a channel management system
• Localisation of extraneous water volumes
• Influent control
• Throttle discharge control
• Determination of basic data for new billing networks

Common

• Max. filling pressure 1.5 bar
• Operating temperature -10 °C to +70 °C
• Storage temperature -20 °C to +60 °C
• Measurement uncertainty  2 % depending on measurement and boundary conditions

CSM Pipe Sensor

• Measurement principle: Ultrasonic cross correlation with real flow profile measurement
• Measurement frequency: 1 MHz
• Protection: IP68
• Ex-Approval:
• II 2G Ex ib IIB T4 Gb (ATEX)
• Ex ib IIB T4 Gb (IECEX)
• Operating pressure: Max. 4 bar
• Cable lengths: 15 m

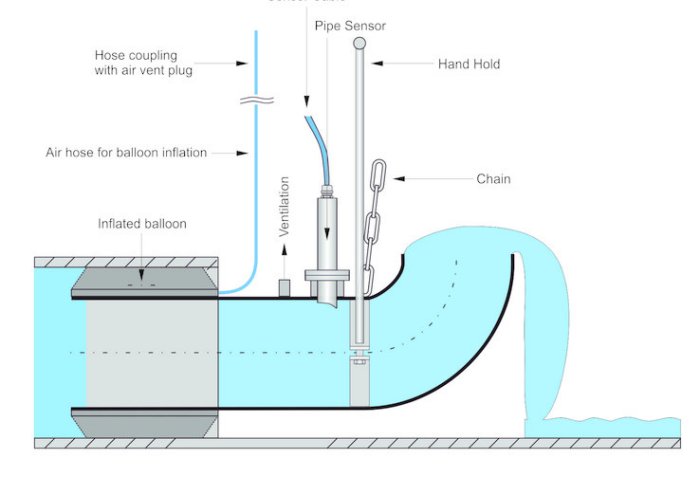

• Construction: 1" pipe sensor with connection flange
• Measurement range: -100 cm/s to +600 cm/s
• Number of scan layers: Max. 16
• Zero point drift: Absolutely stable zero point
• Error limits: Per scan layer:
• < 1 % of measurement value (v > 1 m/s)
• < 0.5 % of meas. value +5 mm/s (v < 1 m/s)
• Material: Stainless steel 1.4571 (AISI 316Ti), PEEK

DN 150

• Outer diameter: 148 mm
• Inner diameter: 90 mm
• Weight (sensor head without cable): 11 kg
• Total length: 835 mm
• for assembly in pipe with inner diameter: 150 - 300 mm
• Qmax: approx. 38 l/s
• Q with 1m accumulation: approx. 17 l/s

DN 200

• Outer diameter: 190 mm
• Inner diameter: 141,8 mm
• Weight (sensor head without cable): 15 kg
• Total length: 970 mm
• for assembly in pipe with inner diameter: 195 - 500 mm
• Qmax: approx. 95 l/s
• Q with 1m accumulation: approx. 42 l/s

DN 300

• Outer diameter: 290 mm
• Inner diameter: 199,4 mm
• Weight (sensor head without cable): 27 kg
• Total length: 1195 mm
• for assembly in pipe with inner diameter: 265 - 600 mm
• Qmax: approx. 187 l/s
• Q with 1m accumulation: approx. 76 l/s
