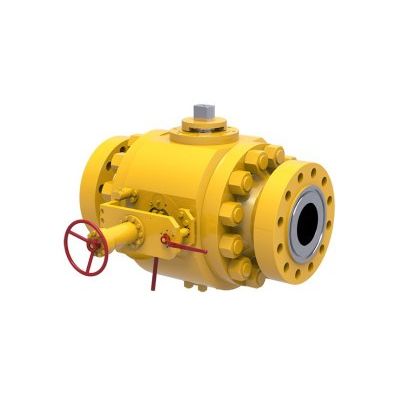

SRI - Pipeline Pig Trunnion Launcher
SRi pig launcher (or receiver) is safe and much more compact than a pig trap. Manual or automatic secured access door. The pig launcher can be equipped with an optional by-pass to allow flow between both sides of the valve if the pig is presented in the valve ball.
Most popular related searches
pig launcher
pig trap
drain plug
pipeline pigging
pipeline pig launcher
ball valve
drain blockage
pigging system
low carbon
Range
- ND 1" (DN25) to ND 24" (DN600)
Classes
- ASME CLASS 150 to 2500
- DIN-PN PN 10 to 64
Material
- Carbon & low alloy Steels
- Stainless steels
- Duplex & Super Duplex
- Nickel Alloys
- Titanium
- API 6D/6A design & construction
- API 6D & ASME B1610 face to face
- Antistatic device
- Double block and bleed (DBB)
- Drain plug
On request
- Full/reduced/customize bore
- Manual or actuated operation
Optional Design features
- Automatic bleeding system
- By-pass system
- Double Piston Effect (DPE)
- Double Isolation & Bleed (DIB)
- ENP on seat/ball/stem/body
- Extended stem
- Heating jacket
- Locking device
- Metal to metal seats
- Overlay on seat pocket
- Overlay on dynamic seal pockets
- Overlay on all wetted parts
- Polymeric lip-seals
- Single Piston Effect
- Stem injection fitting
- Seat injection fitting
- Transition pups pieces BW ends
