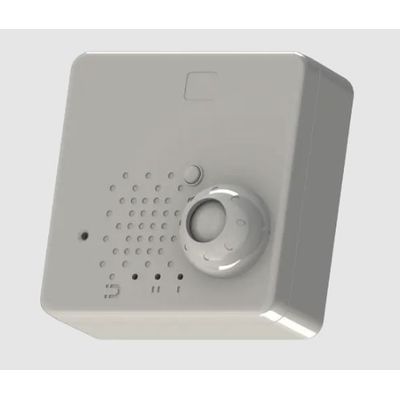

TEKTELIC - Model VIVID -Pir Smart Room Sensor
The TEKTELIC VIVID [PIR Smart Room Sensor] integrates practical functionality into a very small form factor. The VIVID is an ideal solution for holistically monitoring the home and office environment. The device is capable of measuring and reporting temperature, humidity, light, movement, motion, shock, open / closed doors and windows. It also supports battery status updates for easy maintenance, has multiple PIR masking options. The sensor is optimized for long battery life and excellent wireless performance. It is fully configurable over-the-air by the user for custom applications, behaviours, thresholds, trigger events and reports, enabling it to support many different Smart Home and Office IoT applications.
BATTERY LIFE: UP TO 10 YEARS
INGRESS PROTECTION: IP30
BATTERY: CR2477
TX POWER: 14 DBM
WEIGHT: 28G
APPLICATIONS
Movement Detect (Doors, Windows, Drawers)
G-Force Measurement (Settable Trigger)
Motion Detection
On / Off External Contact
On / Off Internal Magnetic Switch
Pulse Reading (Water, Gas, other metering)
Light Detection (On / Off)
Temperature Measurement
Humidity Measurement
MAIN FEATURES
User Configurable Parameters and Thresholds
Designed for Optimal Battery Life
Multiple PIR Masking Options
Long Battery Life
Wall, Ceiling or Table Mount Configurations
Simple Deployment
Sleek and Unobstrusive Design
TECHNICAL CHARACTERISTICS
Operational Temperature: 0°C to 60°C (10°C to 40°C optimal)
Storage Temperature:
-30°C to 60°C (0°C to 30°C optimal)
LoRa Device Class: A
Antenna: Internal
RF Sensitivity: up to -137dBm
