Tognella - Model FT-IPH -Piston Electro-Hydraulic Pressure Switches

SHARE

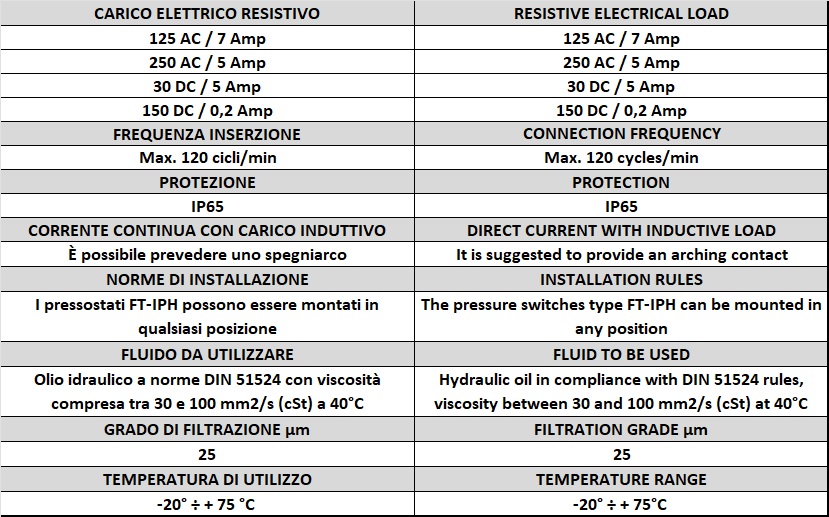

Electro-hydraulic pressure switches for hydraulic applications, plate or in line mounting by adapter. Piston control. Carbon steel. Switch rating: 220Vac. Electrical contact: SPDT. Protection degree: IP65. Electrical connection type: DIN 43650/A. Actuation type: Piston.

Most popular related searches
pressure switch
piston pressure switch

Piston operated, fixed hysteresis, electro-hydraulic pressure switch equipped with electric SPDT contact. When pre-set pressure is achieved, the piston actuates a microswitch. The setting adjustment is achieved by allen screw (R).
