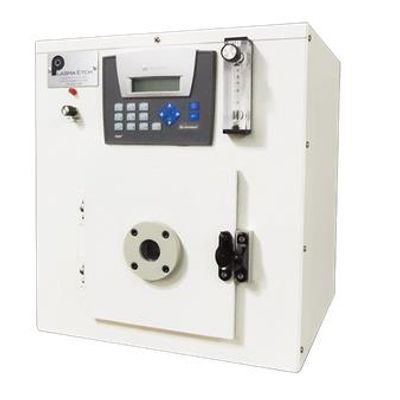

Plasma Etch - Model PE-25 -Low Cost Plasma Cleaner
The PE-25 is our most affordable, entry level plasma cleaner. It`s a robust machine that is perfect for small production facilities, research labs, universities or any industry needing a small-scale, affordable plasma solution. The PE-25 is a basic plasma cleaner that excels at all types of cleaning and bonding. This unit is the best value you will find in the industry. All of our systems offer extremely consistent and repeatable results. If you are looking for a fully automated solution, our PE-25 Venus combines the high value of the PE-25 with fully automated processing. The Venus system includes the same laptop control found on our larger systems.
- Electrode Configuration : One Horizontal (3.5"Wx7"D + 2.5" Clearance)
- Generator : 400W 50KHz Continuously Variable Power Supply with Automatic Matching Network
- Gas Control : One 0-25cc/min Rotometer with Precision Needle Valve
- Vacuum Gauge : 1-2000 mT
- Control System : PLC-Based Keypad Input System with Alphanumeric Display; Stores One Recipe for Automatic Process Sequencing
- Chamber Material : 6061-T6 Aluminum
- Chamber Dimensions : 8" Deep x 5" Round
- Unit Dimensions : 14"x14.5"x18"
- Unit Weight : 52lbs
All compact benchtop systems can be thoroughly customized with a wide range of features including:
- MHz Power Supplies with Automatic Matching Network : Higher watt/frequency power supplies
- PC-based Control System : For fully automatic plasma treater control, multi-step process sequencing, multiple recipe storage, data logging/trending, events/alarms, etc.
- Dry Vacuum Pump : For more control over the process chamber pressure
- Chamber and Vacuum Pump Purge Systems / Air Dryer / Purge Gas Generator : To ensure thorough removal of contaminants from operating equipment, providing uniformity and increasing longevity
- Additional Gas Inputs/Rotometers : Allows for more complex process gas combinations
- Digital Mass Flow Controllers : Provides digital automation and monitoring of process gases
- Light Tower : For easy visualization of the steps of the plasma processing sequence
- Electrical : 120VAC / 60Hz @ 15A or 220VAC / 50Hz @ 14A
