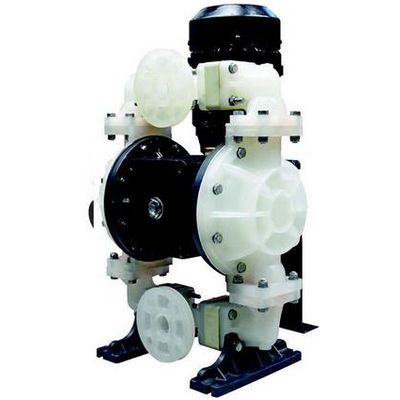

PumpportModel PE 10 -Plastic Body Electric Diaphragm Pump

SHARE

PP10 Electric Diaphragm Pump Technical Specifications: Max. Working pressure : 2 bar. Voltage: 380/220 volts 50 hz. Engine power: 0.55 kW. Flow rate in one stroke : 0.55 lt/stroke. Max. Head : 20 mss. Dry suction depth: 4 meters. Particle permeability: 4 mm. Capacity: 4 m3/h. Reducer speed: 60 RPM. Max. Operating temperature : 100°c. Input : 1 inch. Output : 1 inch.
