Colasit - Model CRDV-R - Plastic Duct ...

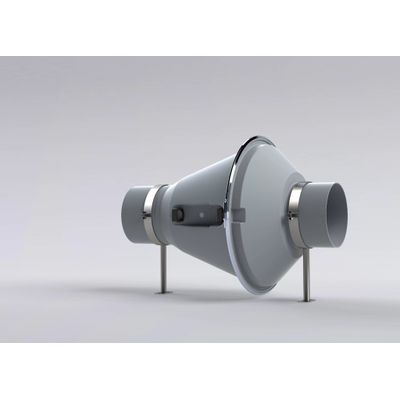

Colasit - Model CRDV-R -Plastic Duct Fan

The Colasit CRDV-R plastic duct fan can be installed both horizontally and vertically in aligned pipe systems. The reliability and stability of the plastic duct fan are proven by the high demand and many years of use in practice.

Most popular related searches

Characteristics

Volume flow: min. 340 m3/h to max. 5600 m3/h
Static pressure: min. 50 Pa to max. 1700 Pa
Efficiency (tot. mech.): up to max. 42 %
Inlet and outlet Ø: 200, 250, 315 mm
Housing material: PPs, PPs-el
Impeller material: PPs, PPs-el, PVDF
Drive: Direct drive
Ex Protection: Version available in ATEX zones 1 + 2

Colasit - Model CRDV-R -Plastic Duct Fan

Specifications
