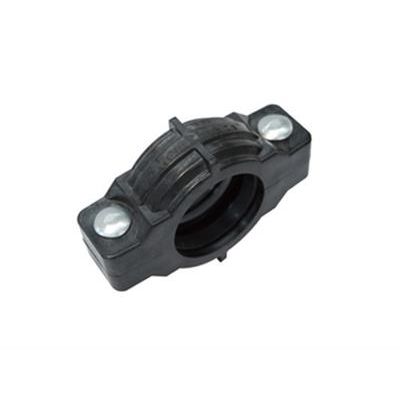

Horizon - Model 100PSI -Plastic Fiexible Coupling
Plastic pressure coupling, mainly designed for brackish, M/F, U/F, and N/F, membrane filtration, permeate, waste water and other low pressure applications. With good toughness and strength, excellent corrosion resistance.
Most popular related searches
reinforcement material
membrane filtration
drinking water
ultraviolet water
filtration membrane
gaskets
ASTM standard
WRAS
acid water
acidic water
- 100 PSI (6.9bar)
- Completely corrosion proof
- 3X designed Safety margin
- Light weight
- Low price & high performance
- Permanent UV resistant, non water absorptive
- Completely corrosion proof
- 3X designed Safety margin
- Light weight
- Low price & high performance
- Permanent UV resistant, non water absorptive
- Approved for portable water application up 85 C
- Drinking water certificate for EPDM gaskets - NSF, WRAS, KTW

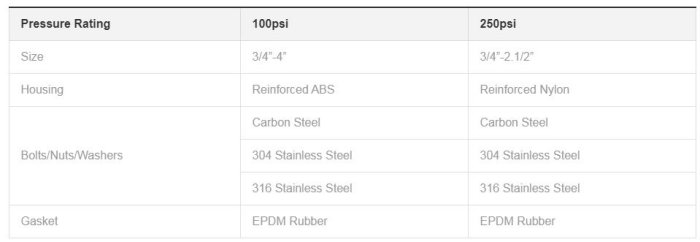

- Sizes-Inches/DN:1 inch to 4 inch (DN25 to DN100)
- Maximum working pressure:100 PSI (6.9bar)/250 PSI (21bar)
- Housings:Glass fiber reinforced material, available in ABS and Nylon
- Rubber Gaskets:Gaskets – EPDM rubber, suitable for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150℃).It is not suitable for medium like petroleum.
- Bolts & Nuts:Material available in carbon steel, SS304 and SS316. Confirming to ASTM F-593
- Standard, big and robust round head bolts, with standard heavy nuts
