F&J - Model H8400 and H8400E -Plastic Housing High Volume Air Samplers

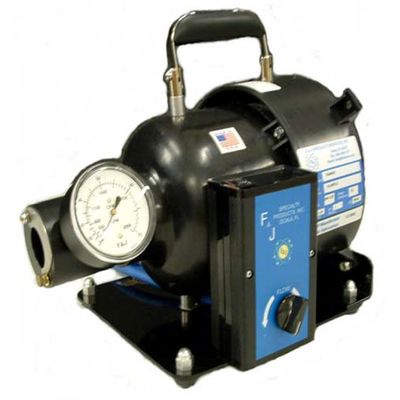

The H8400 (100-120VAC) and the H8400E (200-240VAC) Series Air Samplers are high volume air samplers with a two stage, electric motor driven vacuum blowers. The motor driven blower is mounted in a very durable lightweight plastic polypropylene housing, mounted to a sturdy base plate, having non-skid rubber feet. An optional portable flow-monitoring gauge calibrated in cubic feet per minute (CFM) or liters per minute (LPM) may be utilized to measure the flow rate. The flow rate is adjustable by use of a motor speed controller.
The T8400M or T8400ME Air Sampling System is designed for periodic short-term indoor use. Please consult the product specifications for the design temperature range and the installation category.
The H8400 or H8400E Air Sampling System is designed for periodic short-term indoor use. Please consult the product specifications for the design temperature range and the installation category.
The air sampler may be purchased with the flow monitoring gauge as model H8400M or H8400ME
- Very durable polypropylene plastic housing
- Lightweight
- Variable speed control up to full flow
- Powerful 1.4 H.P. dual ball bearing motor
- 100-120VAC, 50/60Hz; single phase
- 200-240VAC, 50/60Hz; single phase also available
- Optional flow measurement gage (10-70 CFM)
- Circuit Breaker Protected
- Optional – Resettable elapsed time meter
Model FM50TA Flow Monitoring Gauge
- A portable flow-monitoring gage 10-70 CFM (280 – 1980 LPM) is available
Model HV-1SA or HV1SAP Adapter
- An adapter to reduce from 4” (102 mm) diameter to 1.83” FPT
Model FJ304 Combination Filter Holder
- Holds 3.4”D × 1.2”H charcoal filter and 4” (102 mm) diameter filter paper
Model FJ2100 Filter Holder
- 8”×10” (20,3 cm × 25,4 cm) particulate filter holder may be utilized directly on the unit
