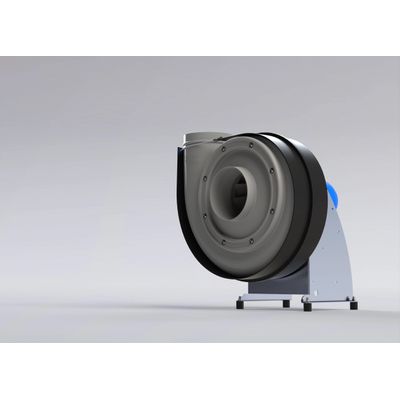

Colasit CMVpro - Plastic Radial Fan Sets
FromColasit AG
The Colasit CMVpro® plastic radial fan sets new standards in efficiency of plastic fans and achieves a noticeable reduction in your operating cost, even compared to the best competitors. In addition to a total mechanical efficiency of up to 83 %, the CMVpro® complies with all current and future environmental standards.
Most popular related searches
radial plastic fan
high-pressure radial fan
ATEX zone 1
centrifugal fan
environmental standard
centrifuge
blower
Characteristics
- Volume flow: min. 150 m3/h to max. 13500 m3/h
- Static pressure: min. 50 Pa to max. 2800 Pa
- Efficiency (tot. mech.): up to max. 83 %
- Inlet and outlet Ø: 125, 160, 200, 250, 315, 400 mm
- Housing material: PPs, PPs-el, PVDF
- Impeller material: PPs, PPs-el, PVDF
- Drive: Direct drive
- Support: Galvanised, Stainless steel
- Ex Protection: Version available in ATEX zones 1 + 2
