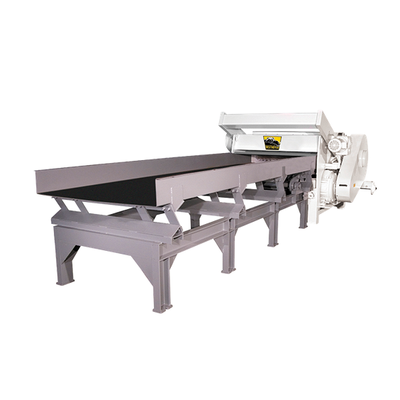

Cresswood - Model EF-30 - Plastic Recycling Machine

• Replaceable Anvil Supports
• Drive Package
• Counterweight
• Variable Speed Feed Roll
• Standard 12′ Vibrating Conveyor
• Exclusive Counterweighted Drive Roll Package
• Rugged Steel Structural Frame
• Drive Train Protection System
• Spherical Roller Bearings
• Easy Service Access
• Destroyer Cutterhead Yields Maximum Output

• Motor HP: 60, 75
• Infeed Conveyor: 12′ Vibrating
• Grinding Head Diameter: 16″
• Grinding Head Length: 30″
• Grinding Head Speed: 400-600 rpm
• Frame Thickness: 3/4″
• Number of Cutter Teeth: 40
• Input Capacity: 7.5″ x 30″
• Floor Area of Unit: 60″ x 168″
• Shipping Weight: 7,500 lbs.

* Specifications are subject to change

** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
