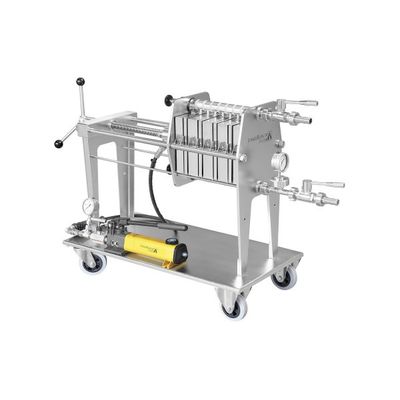

StrassburgerFilter - Model SF 200 -Plate and Frame Filter for Turbid Liquid Food

SHARE

The SF 200 sheet filter was developed especially for the specific requirements of small quantities in real-world applications and is suitable for filtering slightly turbid liquid foods. It is mainly necessary for sterilizing or clarifying filtration and is used as a laboratory filter as well as a wine and spirits filter.

Most popular related searches
frame filter
filter plate
clarifier filtration
laboratory filter
centrifugal pumping
liquid filtration
centrifugal pump
stainless steel sheet
turbidity filter
stainless steel pump
The advantages of the SF 200
  • The SF 200 sheet filter is especially suitable for small filtration quantities.
  • Thanks to filter plates made of reliable HOSTALEN thermoplastic or stainless steel, the sheet filter is suitable for all foods.
  • The sturdy construction makes the SF 200 a good choice for your liquid filtration needs.
The construction of the SF 200
  • The filter frame is equipped with central spindle pressing.
  • The available size of the filter rack is suitable for a maximum of 15 filter sheets.
  • The filter frame and fittings are made of stainless steel (SS 304).
  • The filter plates are made of the proven HOSTALEN thermoplastic. Therefore, the sheet filter is suitable for all foods, is heat resistant up to 130°C and unbreakable. As an alternative, it is also available in stainless steel (SS 304).
  • We also supply the SF 200 with an attached or separate centrifugal pump (single-phase or three-phase alternating current).

Technical data of the SF 200

    • Max. number of filter plates : 14
    • Max. number of filter sheets : 15
    • Max. filter area : 0.5
  • Dimensions
    • Length L mm : 560
    • Width W mm : 290
    • Height H mm : 620
  • Weights
    • Rack without plates kg : 16
    • Plate in Noryl kg : 0.15
    • Plate in stainless steel kg : 1.6
    • Pump kg : 12
    • Fittings and threaded connections : NW 15
