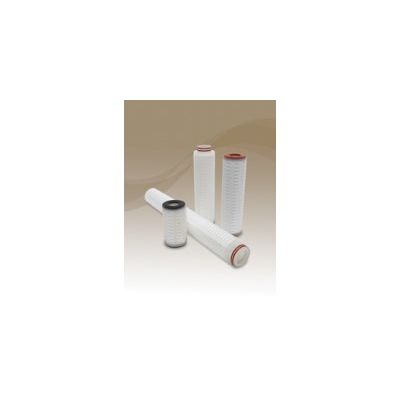

Shelco MicroVantage - Model MGF Series -Pleated Glass Fiber Water Filter Cartridges
FromShelco Filters
Micron retention ratings from 0.2 to 30 microns. Borosilicate microfiberglass media with polypropylene hardware construction offers wide range of chemical compatibility. High media surface area designed for optimal throughput and exceptional particle retention. Rigid, molded polypropylene cage protects pleated media and strengthens structural stability.
Most popular related searches
water filter cartridge
filter housing
filter cartridge
water filter
pleated water filter cartridge
glass fiber filter
pleated water filter
pleated fiber filter
water cartridge filter
biological testing
- High efficiency retention ratings from 0.2 to 30 microns
- Optimal surface area designed for maximum throughput and high dirt holding capacity
- Borosilicate microfiberglass media with polypropylene hardware construction offers wide range of chemical compatibility
- Uniform and fixed pore construction eliminates unloading under high differential pressures
- Long service life - reduces operator costs
- Rigid, molded cage protects pleated media and strengthens structural stability
- Manufactured in state-of-the-art white room manufacturing environment for high purity
- Available in standard lengths and end cap configurations – fits most filter housings
- Wine Prefiltration
- Chemicals
- Blowdown post filter
- Paint / Inks
- Magnetic tape coatings
- Oil & Gas
- Pore Sizes 0.2, 0.45, 1.0, 3.0, 10.0, 30.0 microns
- Nominal Lengths 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter 2.67" (6.78 cm)
- Inside Diameter 1.0" (2.54 cm)
- Media Surface Area 5.0 sq.ft. (0.46 m2) per 10 inches in length
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)
- Materials of Construction
- Filter Media: Borosilicate Microfiberglass
- Support Layer: Polyester
- Cage and End caps: Polypropylene
- Maximum Operating Temperature 176°F ( 80°C)
- Recommended Change-out Differential Pressure 35 psid (2.4 bar)
- Maximum Differential (Collapse) Pressure
- 80 psid @ 70°F (5.5 bar @21°C), 40 psid @ 150°F (2.75 bar @60°C)
- FDA and USP Compliance
- All materials comply with FDA requirements for food contact per
- CFR Title 21 177.1520. All components meet USP Class VI Plastic biological reactivity tests.
