Fil-Trek Corporation

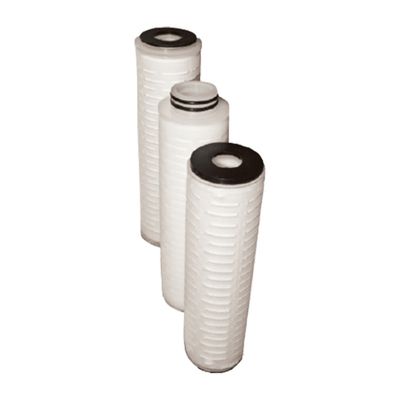

Fil-Trek - Model Aqua-Tec Series -Pleated Membrane Cartridge Filter
Absolute Rated Pleated Polyethersulfone Cartridges. 2.7″ OD element with exceptional dirt-holding capabilities. Effective absolute rated filtration with available micron ratings from 0.05μm to 0.65μm. 100% thermal bonded construction free of adhesives. Elements fit most industry standard housings. Meet USP specifications for Class VI for plastics and are FDA compliant for food and beverage contact. Polyethersulfone Media, Absolute Rated.
Most popular related searches
membrane cartridge filter
cartridge filter
membrane filtration cartridge
filter cartridge
pleated filter cartridge
membrane filtration
filter membrane
pleated cartridge
bag filter cartridge
pleated membrane filtration cartridge
Materials of Construction
Media:
- Asymmetric polyethersulfone
Support Layers:
- Polypropylene
Inner Core Caps, End Caps, Cage:
- Polypropylene
Available Sizes/Lengths
Outside Diameter:
- 2.7″ (6.9 cm)
Inside Diameter:
- 1.0″ (2.54 cm)
Lengths:
- 10” (25.4 cm)
- 20” (50.8 cm)
- 30” (76.2 cm)
- 40” (101.6 cm)
Temperature Limit
180°F (82°C)
Maximum Differential Pressure
60 PSID (4.14 bar) @ 80°F (27°C)
30 PSID (2.07 bar) @ 160°F (71°C)
15 PSID (1.03 bar) @ 200°F (93°C)
Recommended Change Out Pressure
35 PSID
Micron Ratings
0.05 – 0.65 micron
Filter Efficiency
Absolute 99.98
