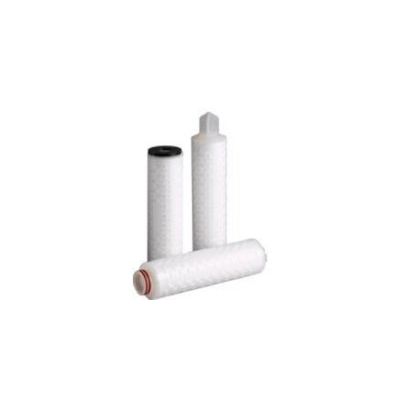

SupaPore - Model TP -Pleated Membrane Filter Cartridge

• A naturally hydrophobic PTFE membrane rated at 0.2µm in liquids and 0.01µm in gases
• Polypropylene support
• Minimal fibre migration
• Wide chemical compatibility
• Validation by bacterial and aerosolised bacteriophage challenge

All cartridges are thermally bonded and adhesive free. Each unit is pre-flushed with ultra-pure water and integrity tested before final assembly

• Can be steam sterilised
• Sanitisable
• Meet current US FDA CFR Title 21requirements
• Fully integrity testable by Water Intrusion, Bubble Point or Diffusion Flow test
• All B grade modules are integrity tested during manufacture

Available in a wide range of grades & absolute rated pore sizes:

• 0.1, 0.2, 0.45, 1.0µm and solvent grade
• General Grade
• Biological Grade

Suitable for most sanitisation regimes including steaming, autoclaving, hot-water flush and most common sanitising agents.

Amazon Filters manufactures a comprehensive range of filter housings for SupaPore TP cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.

• Fully Integrity Testable - Water Intrusion, Bubble Point and Diffusional Flow values provided for all biological grade pore sizes
• Validated removal ratings for consistent and reliable performance
• Feature naturally hydrophobic PTFE membrane and polypropylene hardware
• Thermal bonding process eliminates adhesives and ensures minimal extractables
• Identification mark on every cartridge
• Full product guide available

Dimensions
Outside Diameter: 70mm
Typical Surface Area: 0.73-0.80m2 (Per 10")
Length: See ordering guide

Sterilisation and Sanitisation
Steam or Autoclave: 136°C for 30 mins (100 cycles)
Hot Water: 90°C for 30 mins (0.2 bar Ap max)

Maximum Operating Conditions
Temperature: 80°C

Recommended Maximum Differential Pressure:
Forward Flow: 5.0 bar @ 20°C
Reverse Flow: 2.1 bar @ 20°C

Materials of Construction
Filter Media: PTFE
Media Support: Polypropylene (PP)
Cage, Core & End Caps: Polypropylene (PP)

Integrity Test Specification
B Grade

• Food and Beverage: CO₂ lines, Sterile vent for storage and transfer tanks
• Pharmaceutical: Solvent filtration, polishing
• Fine Chemicals: Polymers, Aggressive acids. Bases, Solvents, Ozonated Dl Water
• Electronics: Photoresists, Acids, Etch Solutions
