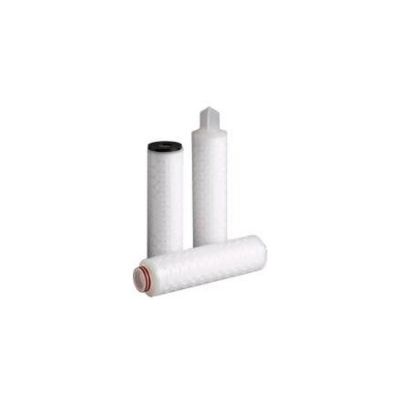

SupaPore - Model THB -Pleated Membrane Filter Cartridge
SupaPore THB Microfiltration cartridges have been designed specifically for use in a wide range of aggressive gas and liquid processing applications where a strong construction with minimal pressure drop is required. Its naturally hydrophobic expanded PTFE membrane makes this cartridge an ideal choice for systems requiring excellent compatibility, low pressure drops and high flow rates.
- A naturally hydrophobic PTFE membrane rated at 0.2µm in liquids and 0.01µm in gases
- Large diameter core for higher flow rates
- Polypropylene and stainless steel support
- Minimal fibre migration
- Wide chemical compatibility
- Validation by bacterial and aerosolised bacteriophage challenge
All cartridges are thermally bonded and adhesive free. Each unit is pre-flushed with ultra-pure water and integrity tested before final assembly.
- Can be steam sterilised
- Sanitisable
- Meet current US FDA CFR Title 21requirements
- Fully integrity testable by Water Intrusion, Bubble Point or Diffusion Flow test*1
- Modules are integrity tested during manufacture
- Suitable for most sanitisation regimes including steaming, autoclaving, hot-water flush and most common sanitising agents.
Amazon Filters manufactures a comprehensive range of filter housings for SupaPore THB cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.
- Very high flow rates and low pressure drops
- Validated removal ratings for consistent and reliable performance
- Fully Integrity Testable - Water Intrusion, Bubble Point and Diffusional Flow values provided for all biological grade pore sizes
- Features naturally hydrophobic expanded PTFE membrane and polypropylene/St.Steel hardware
- Thermal bonding process eliminates adhesives and ensures minimal extractables
- Identification mark on every cartridge
- Full product guide available
Dimensions
Outside Diameter: 70mm
Typical Surface Area: 0.80m2 (Per 10")
Length: See ordering guide
Sterilisation and Sanitisation
Steam or Autoclave: 135°C for 30 mins (250 cycles)
Hot Water: 90°C for 30 mins (0.2 bar Δp max)
Maximum Operating Conditions
Temperature: 80°C
Recommended Maximum Differential Pressure: Forward Flow: 5.0 bar @ 20°C
Reverse Flow: 2.1 bar @ 20°C
Materials of Construction
Filter Media: PTFE
Media Support: Polypropylene (PP)
Cage and End Caps: Polypropylene (PP)
Core: 316 Stainless Steel
Food and Beverage: CO2 lines, Sterile vent for storage and transfer tanks
Pharmaceutical: Solvent filtration, polishing
Fine Chemicals: Polymers, Aggressive acids. Bases, Solvents, Ozonated Dl Water
Electronics: Photoresists, Acids, Etch Solutions
