IPS - Model SPRAY Series -Plug-in Sensor for Inline Particle Monitoring

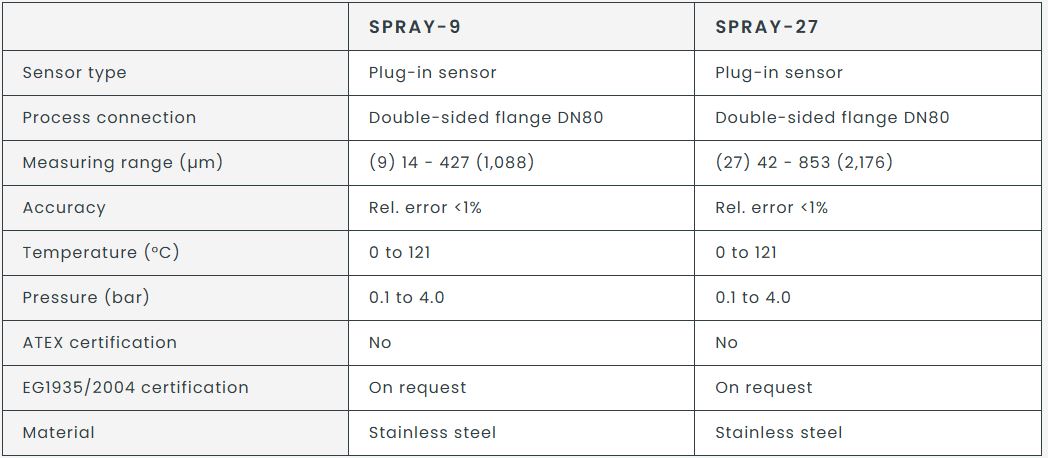

The SPRAY plug-in sensor is tailored for the inline monitoring of droplets, sprays, and minute particles in gases, compatible with various apparatus and wide pipework systems. It provides high-contrast and true-to-scale imagery even in environments with high gas velocities, allowing for precise particle detection concerning size and shape. The sensor delivers real-time data crucial for system control, with specifications that include double-sided flange DN80 process connections and a measuring range extending from 14 to 853 micrometers, depending on the model. With a relative error below 1%, it operates efficiently within a temperature range from 0 to 121°C and pressures from 0.1 to 4.0 bar. While not ATEX certified, EG1935/2004 compliance is available upon request. Constructed from durable stainless steel, the sensor supports the SOMA Workspace software, enabling comprehensive data analysis and control signal generation for dynamic process control.
