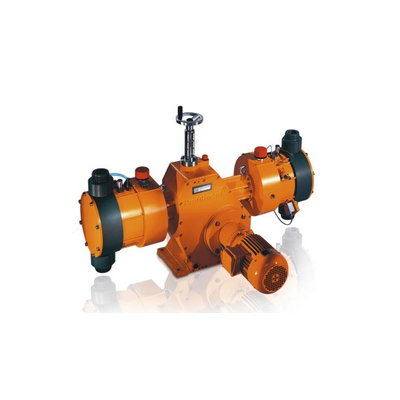

ProMinent - Model Makro M5Ka -Plunger Metering Pump
Capacity range of single head pump: 38 – 6,014 l/h, 320 – 6 bar. The plunger metering pump Makro/ 5 can virtually be used throughout the low-pressure range and its modular construction enables it to be outstandingly adapted to the performance requirements of the respective application.
Powerful, built to last with a plunger
The plunger metering pump MAKRO M5Ka together with the MAKRO hydraulic diaphragm and diaphragm metering pumps form a range of drive mechanisms with stroke lengths of 20 or 50 mm. A wide range of drive versions is available for use in areas at risk from explosion with ATEX certification.
Process reliability:
- The dosing precision is better than ± 0.5 % within the 10-100 % stroke length range under defined conditions and with correct installation
Excellent flexibility:
- The modular construction with single and double head versions permits a wide range of applications, with the double head designs (boxer principle) being operated in push-pull mode
- It is possible to combine up to 4 metering units, even with different pump capacities, in multiple pump systems
- 5 different gear ratios are available
- Customised designs are available on request
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Volume-proportional metering of chemicals/additives in water treatment
- Metering of reactants and catalysts in the chemical industry
- Level-dependent metering of additives in industrial production engineering
- Stroke length: 0-50 mm
- Rod force: 10000 N
- Stroke length adjustment range: 0 – 100%
- Stroke length adjustment: manually using manual adjustment wheel and scaled display in 0.5% increments (optionally with electric control drive)
- The dosing precision is better than ± 0.5 % within the 10 – 100% stroke length range under defined conditions and with correct installation. Observe the information in the operating instructions
- High-performance ceramic-coated stainless steel plunger
- Wetted materials: Stainless steel 1.4571, special materials are available on request
- A wide range of power end/drive versions is available: Three-phase standard AC motors, motors for use in areas at risk from explosion and different flange designs for use in customer-specific motors
- Degree of protection: IP 55
- Salt water-resistant, acrylic resin-coated cast aluminium housing
- For safety reasons, provide suitable overflow equipment with all plunger metering pumps during installation
- Design in compliance with API 675 among others
Control of MAKRO M5Ka metering pumpsStroke length controller MAKRO M5Ka
Control drive consisting of an actuator with servomotor and integral microprocessor controller for stroke length adjustment via a standard signal. Actuating period approx. 100 sec for 100% stroke length, equipped with 2 limit switches for min./max. position, degree of protection: IP 54. Electrical connection 230 V (±10%), 50/60 Hz, approx. 40 W mechanical stroke length display fitted on the Makro/ 5 drive.
Special voltage/higher degrees of protection/explosion protection available on request.
Design with:
0/4-20 mA standard current input (corresponds to stroke length 0-100%); internal switch-over for manual/automatic operation, key switch for stroke adjustment in manual mode. 0/4-20 mA actual value output for remote display.
Stroke sensor with Namur signal
Mounting on the crank drive mechanism of the Makro/ 5 gearbox. For precise measurement of each metering stroke, comprising electronic cams and inductive proximity switches, switching signal according to Namur. In combination with electronic pre-selection meters suitable for batch metering or proportional metering in conjunction with proportional control.
Retrospective fitting only possible in the factory.
Approved for explosion protection operation with degree of protection EEx ia II C T6.
