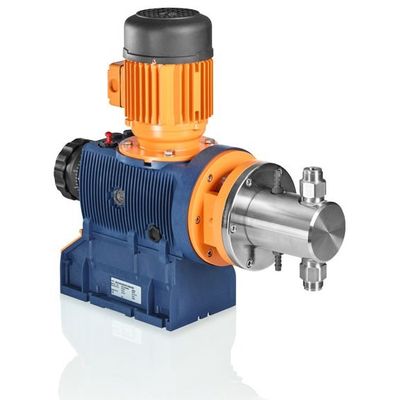

ProMinent - Model Sigma/ 2 (Basic Type) -Plunger Metering Pump
Capacity range 2 – 76 l/h, 320 – 12 bar. The plunger metering pump Sigma/ 2 (Basic Type) is an extremely robust plunger metering pump with high-performance plunger and the option to adjust the pump capacity in 0.2% increments. It offers a wide range of power end versions, such as three-phase or 1-phase AC motors, even for Exe and Exde areas with ATEX certification.
Sigma plunger pump – durable and high-performance
The plunger metering pump Sigma/ 2 (Basic Type) (SBKa) is a metering pump, the pump capacity of which can be precisely adjusted in 0.2% increments, either manually or optionally with an electric actuator or control drive. A wide range of power end versions is available for use in areas at risk from explosion with ATEX certification.
Excellent process safety and reliability:
- Metering reproducibility is better than ± 1% within the 10 – 100% stroke length range under defined conditions and with correct installation
Flexible adaptation to the process:
- Wide range of power end versions, also for use in Exe and Exde areas and different flange designs for the use of customised motors
- Customised designs are available on request
- Volume-proportional metering of chemicals in the treatment of boiler feed water
- Metering of reactants and catalysts in the chemical industry
- Level-dependent metering of auxiliary agents in industrial production engineering, for instance hot wax metering in the production of adhesive strips
- Stroke length: 15 mm
- Stroke length adjustment range: 0 – 100%
- Stroke length adjustment: manually by self-locking rotary dial in 0.2% increments (optionally with electric actuator or control drive)
- Metering reproducibility is better than ± 1 % within the 10-100% stroke volume adjustment range under certain defined conditions and with correct installation
- Wetted materials: Stainless steel 1.4571/1.4404, special materials are available on request
- High-performance oxide ceramic plunger
- A wide range of power end versions is available: Three-phase standard motor, 1-phase AC motor, motors for use in areas at risk from explosion and different flange designs for use in customer-specific motors
- Degree of protection IP 55
- Highly rigid fibreglass-reinforced plastic housing with excellent chemical resistance
- Provide suitable overload protection in all plunger metering pumps during installation for safety reasons
Sigma Basic Type Control FunctionsStroke length actuator/control drive
Actuator for automatic stroke length adjustment, actuating period approx. 1 second for 1 % stroke length, return potentiometer 1 K degree of protection IP 54.
Control drive consisting of an actuator and an integral servo controller for stroke length adjustment via a standard signal. Standard current input 0/4-20 mA corresponds to stroke length 0 - 100%. Switch-over for manual/automatic operation, key switch for stroke adjustment in manual mode, mechanical position display of actual stroke length value output 0/4-20 mA for remote display.
Variable speed motors with integrated frequency converter (identity code specification V)
Power supply 1-phase 230 V, 50/60 Hz, 0.37 kW
Externally controllable with 0/4-20 mA (see Fig. pk_2_103).
Speed controllers in metal housing (identity code specification Z)
The speed controller assembly consists of a frequency converter and a variable speed motor of 0.37 kW.
