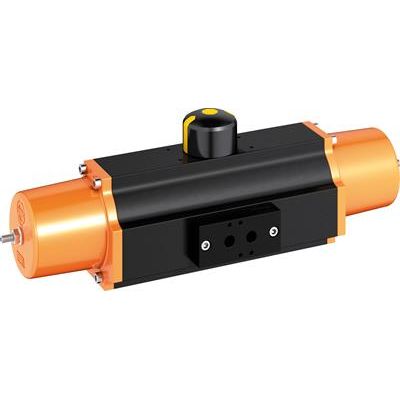

EBRO ARMATUREN - Pneumatic actuator type EB-SYS
Something not many people know: EBRO produces its own actuators - and has been doing so for more than 40 years. For EBRO customers this means that butterfly and gate valves can always be equipped with the most suitable actuator. No compromises, just the best possible match of components - this is what the EBRO actuator series stands for.Pneumatic actuators, single or double acting, have been proven for decades. However, industrial process air is expensive. Energy efficiency is therefore the topic of the day. As a manufacturer of valves and actuators, EBRO can specifically match single product components according to customer requirements and within the scope of operating conditions, thus substantially reducing regular operating costs.Most popular related searches
high temperature valve
air filter
process air
compressed air
gate valve
control valve
butterfly gate valve
compressed air filter
pneumatic actuator
air filtration
Torque range: 35 - 3590 Nm (air alimentation 6 bar)
End positions: exactly adjustable between 8°/+3°
Limit switch- and control valve-fitting: VDI / VDE 3845
Control pressure: min. 2,5 bar, max. 8 bar
Control air: Filtered compressed air dry or lubricated.
Temperature range: -20°C to +80°C (standard), -40°C to +80°C (low temperature), -15°C to +120°C (high temperature)
Valve interface: EN ISO 5211
Cylinder liner: High quality marine grade aluminium alloy, hard anodized. Other coatings upon request.
