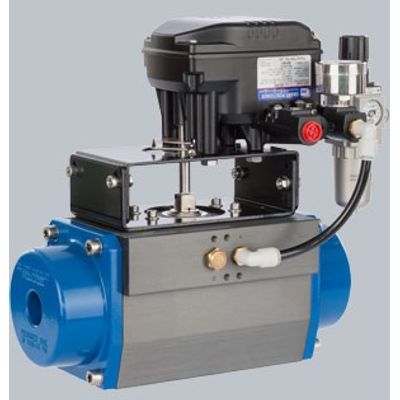

Swissfluid - Model SPA-R -Pneumatic Actuators
FromSwissfluid AG
Pneumatic Quarter Turn Actuators SPA-R are ideal for trouble-free, modular automation of process valves such as butterfly, plug and ball valves or as a control unit on reactor sampling systems.
Most popular related searches
pneumatic actuator
position indicator
epoxy coating
throttle valve
solenoid valve
compressed air
ball valve
corrosion protection
stainless steel solenoid valve
quarter-turn pneumatic actuator
- Robust Rack & Pinion construction
- For dry or lubricated, filtered compressed air
- Plant-side lubricated for 1'000'000 cycles
- Hard anodized / epoxy coated body for excellent corrosion protection
- Multiple bolt circles according to ISO 5211-DIN 3337 for direct automation
- Top drillings according to NAMUR VDI\VDE-3845 for accessory mounting
- Visual position indicator
- Pre-compressed spring cartridges for safe dismantling
Body: Stainless steel 316 polished
Accessories: Solenoid valves, limit switches, P/P and I/P positioners, emergency manual override gearbox, mufflers, throttling valves
