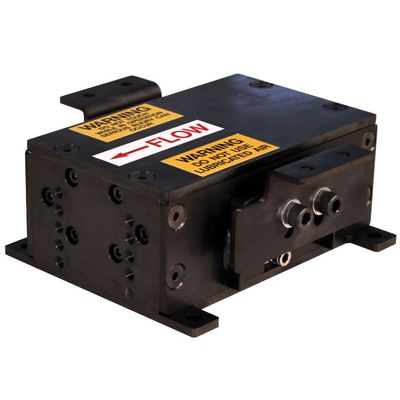

Pneumatic - Model Shuttle Pro-150 -Pneumatic Conveyor Drive for Tray Conveying
The Shuttle Pro-150 Pneumatic Conveyor Drive is designed for efficient single or multiple tray conveying applications. This compact drive offers a linear motion pneumatically powered solution, functioning optimally within an air pressure range of 0-80 PSI, while consuming 0.36 CFM at 120 strokes per minute. The device operates effectively in temperatures ranging from 0 to 120 degrees Fahrenheit, supporting a force of 150 lbs at 80 PSI. This equipment moves assemblies up to 12.50 feet per minute and weighs approximately 37.50 lbs, capable of handling up to 75 lbs. The Shuttle Pro-150 is engineered to ensure longevity and reliability under rigorous conditions, using dry filtered air to maintain performance standards. It is an ideal solution for industries requiring precise and consistent material conveyance within defined mechanical parameters.
- Weight : 23 lbs
- Dimensions : 8.50 × 9.00 × 3.75 in
- Operating Pressure : 0-80 PSI
- Air Consumption : 0.36 CFM @ 120 Strokes/Minute
- Air Requirements : Dry Filtered Air
- Operating Temperature : 0-120° F
- Push Force : 150 lbs @ 80 PSI
- Stroke Length : 1.25 in
- Average Conveying Speed : 12.50 Feet/Minute
- Tray Weight Capacity : 37.50 lbs
- Part Load Capacity : 75 lbs
- Maximum Cross Bar Length : 30.00 in
- Heavy Duty Black Oxide Coated Steel Construction
- Made in the USA
- Lubrication Free Design
- No Dynamic O-Ring Seals
- Easy to Maintain
- Low Operating Cost
- Simple to Install
- Easy to Operate
- Efficient Material Movement
