Poligon - Flocet self-Cleaning Suction Filter
FromPolygon-Auto LLC

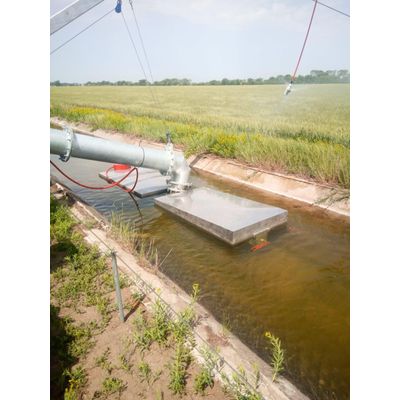

Flocet self-cleaning filter is designed for installation on the suction system of the pivot with water extraction from the channel with capacity up to 450 CBM/hr. The filter allows extraction of water from concrete and other channels, protect from mud and mechanical contamination, performing self-cleaning with the source water.
Most popular related searches
self-cleaning filter
filter cleaning
water extraction
source water
pump station
water supply
water source
contaminant cleaning
hose pumping
hose pump
Design and principle Actions
Represents a rotating net drum with a cleaning unit (brush). The design has two sealed metal floats. The rotation of the drum is due to the energy of the water supplied through the rubber hose from the pump station to the nozzle of the wheel of the turbine, which through the gearbox rotates the drum. Self-cleaning of the drum is carried out by means of a brush which is fixed on floats.
