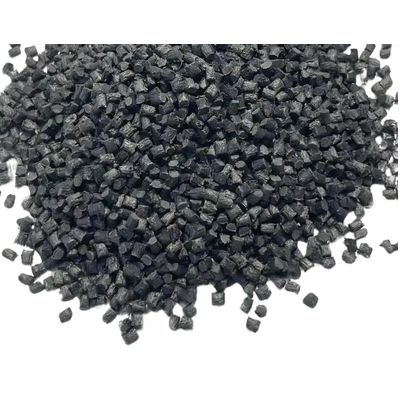

BW-Industry - Model 650G -Polyether Ether Ketone (PEEK) Granules & Powder
Polyether Ether Ketone (PEEK) 650 series includes PEEK650PF,PEEK 650G,High PV Wear Resistant PEEK WG101 ,Anti-Static Grade PEEK ESD101. which is a high performance engineering plastics, ultra-low viscosity resins, its MVR index is 6~12, the main processing methods are extrusion, molding, injection molding, and thermoforming, MVR index of 6~12, the main processing methods are extrusion, molding, injection molding, and thermoforming.
- PEEK 650PF: Pure PEEK material in powdered state.
- PEEK 650G: Unfilled virgin PEEK material.
- PEEK WG101: High PV Wear Resistant PEEK
- PEEK ESD101:Anti-Static PEEK
- As a specialized supplier, PEEK 650 series products have FDA, RoHS, REACH and other approvals.
PEEK 650PF Material Description
- PEEK 650PF is a high-performance thermoplastic material
- Unreinforced PolyEtherEtherKetone (PEEK)
- Semi-crystalline, fine powder for compression moulding
- Low flow, FDA food contact compliant
- Natural color
Seals and Gaskets:
Specific Applications: This was used in the automotive industry for seals of the engines.
Model: As for the 650PF material, it can be processed to become high-performance sealing gaskets that have a high tolerance to heat and chemical erosion.
Food Processing Equipment Parts:
Specific Applications: Ezio is utilized in components of valves and pumps for food processing equipment.
Model: Food industry applications for valves and pumps can discover 650PF to produce parts such as valve seals and pump cases as it has FDA food contact approval.
Chemical Processing Equipment:
Specific Applications: It is employed in pump housings and valves of chemical plants and is highly demanded in automotive industry.
Model: 650PF material is ideal for manufacturing pump housings and valves that shall offer the desired chemical endowments of high ACPI and high mechanical properties to guarantee use in corrosive service for several years.
Mechanical Data:
- Tensile Strength (Yield, 23°C): 90 MPa (ISO 527)
- Tensile Elongation (Break, 23°C): 30% (ISO 527)
- Tensile Modulus (23°C): 3.9 GPa (ISO 527)
- Flexural Strength (23°C): 150 MPa (ISO 178)
- Flexural Modulus (23°C): 3.6 GPa (ISO 178)
- Izod Impact Strength (Notched, 23°C): 7.5 kJ/m² (ISO 180/A)
- Izod Impact Strength (Unnotched, 23°C): Not broken (ISO 180/U)
Thermal Data:
- Melting Point: 343°C (ISO 11357)
- Glass Transition (Tg) Onset: 143°C (ISO 11357)
- Glass Transition (Tg) Midpoint: 150°C (ISO 11357)
Flow:
- Melt Viscosity (400°C): 500 Pa.s (ISO 11443)
Miscellaneous:
- Density: 1.30 g/cm³ (ISO 1183)
- Bulk Density: 0.30 g/cm³ (ISO 1183)
- Average Particle Size (D50): 75 µm (ISO 13320-1)
Typical Processing Conditions:
- Drying Temperature/Time: 150°C / 3h or 120°C / 5h (residual moisture <0.02%)
- Processing Temperature: 380-400°C
