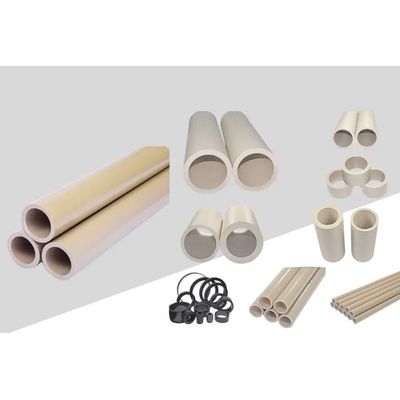

BW-Industry - Polyether Ether Ketone (PEEK) Tube
Polyetheretherketone (PEEK) tube is a lightweight tubing, high-temperature ,high press thermoplastic pla pipe. The PEEK tube produced using PEEK continuous extrusion moulding technology solves the technical problems of high limit in molding process products and easy internal shrinkage holes in injection molding process, while reducing losses and machining costs.
PEEK Polymer Pipes Applications
- polymer pipes can be processed into ring parts includes bearings, piston components, pumps, HPLC columns, compressor plate valves and cable insulation, and is widely used in industries such as Aviation Sector, Oil Exploration Sector, Industrial Sector.
PEEK tube in Aviation, Oil Exploration, and Industrial Sectors:Aviation Sector:
Lightweight: Victrex Pipes significantly reduce weight compared to traditional metal materials, offering a 65% reduction compared to stainless steel, a 45% reduction compared to titanium, and a 30% reduction compared to aluminum.
High-Temperature and Chemical Resistance: These pipes maintain excellent mechanical properties in high-temperature and humid environments, particularly showing exceptional resistance to aviation fuels.
Safety: They feature low smoke and low toxic gas emissions, adhering to the stringent safety, quality, and performance regulations of the aviation industry.
Multiple Certifications: Victrex Pipes have been certified by several aircraft manufacturers, including meeting material specifications for Airbus and Boeing.
Oil Exploration Sector:
Corrosion Resistance: Victrex Pipes offer high resistance to oilfield chemicals, effectively withstanding stress corrosion cracking and pitting in harsh environments.
Mechanical Performance: They retain high mechanical strength and toughness under high-temperature conditions, suitable for high-pressure, high-temperature working environments.
Cost-Effectiveness: Compared to expensive corrosion-resistant alloys, these pipes offer better cost efficiency with less volatility in raw material prices.
Extended Service Life: Their superior wear and corrosion resistance significantly extend the equipment`s service life, reducing maintenance downtime.
Industrial Sector:
High-Temperature Performance: Victrex Pipes excel in high-temperature environments, demonstrating outstanding chemical, abrasion, and wear resistance.
Mechanical Strength and Durability: They boast high mechanical strength and fatigue resistance while being resistant to chemical corrosion and hydrolysis.
Electrical Insulation: They perform reliably in industrial applications requiring electrical insulation.
Radiation Resistance: These pipes exhibit excellent resistance to gamma radiation without becoming brittle, making them suitable for applications exposed to radiation.
- Load thermal deformation temperature (30% glass fiber or carbon fiber): 316?
- Glass transition temperature: 143?
- Melting point: 334?
- Density: 1.3
- Molding shrinkage: 1.2
- Tensile strength: 100
- Lzod impact strength (notch): no breakage
- Friction coefficient: 0.30-0.38Water absorption: 0.5
- Continuous use temperature: 260
- Flexural strength: 163
- Rockwell hardness: 99
