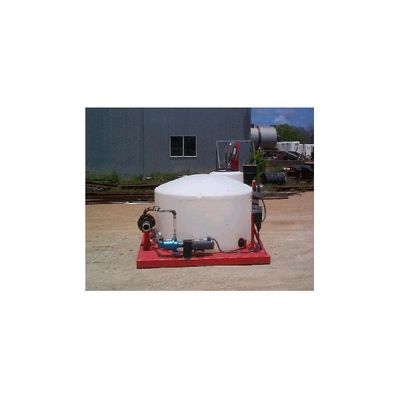

Aqua-Zyme - Model ADS -Polymer Mixing and Dosing Unit

FromAqua-Zyme Disposal Systems, Inc.

SHARE

All components shall be mounted on a single skid constructed of 3″ channel iron and 3/16″ carbon steel plate. Dimensions of the complete unit shall be 78″ L x 78″ W x 69″ H. Unit shall be constructed such that the forks of a fork lift can be inserted into the base of the skid to allow the entire unit to be moved. Skid shall be primed with a 2-part epoxy; top coated with a polyurethane finish. All equipment mounted onto the Polymer Mixing and Dosing Unit shall be suitable for expected operating conditions. Polymer Mixing and Dosing Unit shall be capable of accepting liquid polymer.

Most popular related searches

polymer dosing system

waste disposal system

Polymer Mixing and Dosing Unit shall include the following features:

One (1) 500 gallon polyethylene mixing tank
One (1) solid Stainless Steel 3/4″ mixing shaft equipped with two (2) 4″ Stainless Steel mixing propellers
One (1) TEFC 1.5 HP AC electric stirring motor (110v)
One (1) TEFC 1 HP DC electric pump motor (110v)
One (1) positive displacement polymer injection pump having an adjustable capacity of 3-27 gpm
One (1) 3″ x 6″ polymer mixing manifold with a five-ply neoprene shear plate
One (1) 110v (20 amp), single phase electrical supply junction box
One (1) Baldor DC controller
One (1) flow meter graduated with a flow range of 3-27 gpm
One (1) 110v variable rheostat switch and a mixing “on/off” power switch
One (1) 25′ electrical power cord with 3-way grounded plug

Operating Requirements

110 Electrical Service Connection
Water Connection with Garden Hose
