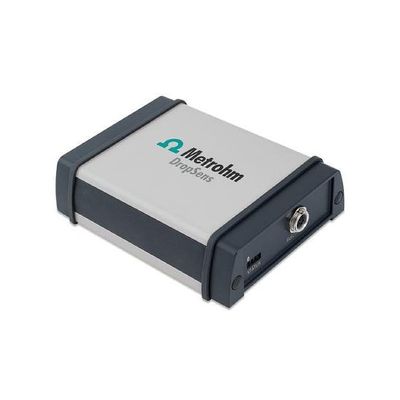

Metrohm - Model µStat 300 - STAT300 -Portable Bipotentiostat
FromMetrohm AG
μStat 300 is a portable BiPotentiostat that can be applied for Voltammetric or Amperometric measurements and can be used with one- or two-working electrodes configuration. Li-ion Battery powered, it can be easily connected to a PC via USB and Bluetooth.
Most popular related searches
- Operating modes: Bipotentiostat; Potentiostat
- PC interface: Bluetooth®; USB
- Power: Li-ion Battery (1250 mAh); USB; DC charger adaptor compatible (5 V)
- Potential range in volt: ±2 V
- Maximum current in Ampère: ±3 mA
- Number of current ranges: 7
- Number of current ranges remarks: ±1 nA to ±1 mA
- Multichannel instrument: NO
- Maximum number of channels: 1
- Maximum number of WE sharing AUX and REF: 2
- Potential accuracy: ±0.2 %
- Current accuracy: ≤0.5 % of current range at 100 nA to 10 mA
- Measured current resolution: 0.025 % of current range (1 pA on lowest current range)
- External inputs/outputs: Iout, Eout; 2 Analog inputs; 1 Analog output; 2 Digital input/outputs; TX, RX, RTS signals for RS232 connection
- Dimensions: 100 x 36 x 132
- Weight of the instrument in kg: 0.48
