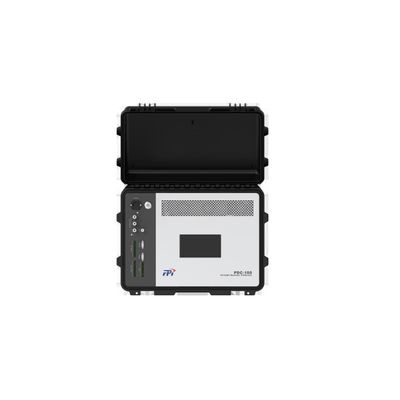

FPI - Model PDC-100 -Portable Calibrator for Ambient Air Gas Analyzers
FPI PDC-100, a highly integrated portable calibrator with an internal air compressor. One device can complete clean zero gas generating and calibrate gases output. The high precision mass flowmeters with external cylinders is used to provide span gas required for zero point and span point calibration for precision gas analysis instrument.
Most popular related searches
gas analysis device
gas analyzer
gas analyzer calibration
zero gas generator
mass flow metering
gas analysis
mass flow meter
flow control
calibration gas
environment monitor
Features
- Air compressor included, easy to operate.
- Solid durable suitcase appearance, easy to transport and carry.
- High precision mass flowmeters provide stable and linear output.
Applications
- Road environment monitoring system.
- Calibration and maintenance of various analyzers.
- Preparation of standard gas samples for testing.
- Ambient air monitoring system.
- Long path gas analysis instrument and other kinds of gas analyzer calibration.
Output Concentration: SO2＜0.025ppb; NO＜0.025ppb; NO2＜0.025ppb; O3＜0.3ppb; CO＜0.01ppm; H2S＜0.025ppb; NH3＜0.025ppb.
Compressor: Internal oil-less piston pump
Flow Range of Dilution Air: 0~10SLPM
Flow Accuracy: ±1% F.S.
Repeatability of Flow Control: ±0.2% F.S.
Linearity of Flow Control: ±0.5~1% F.S.
Calibration Gas Output Port: 3
Dimensions(HxWxD): 624×498×353mm
Weight: 31.65kg
